The PEAKnx Control 16

Control 16
15.6” KNX Touch Panel

The Control 16 is a powerful touch panel featuring an enhanced screen-to-body ratio and practical side buttons — ideal for centralised KNX building control. Perfect for smart homes and commercial properties alike.

KNX visualisation for your home and room control

Lights (dimmers, RGB luminaires)
Create your individual lighting atmosphere.
Sockets & switches
View devices and turn them on and off.
Shutters & blinds
Raise or lower shading devices as needed.
Timer
Specify the time for a function to be executed.
Heating
Make your home cosy by individually adjusting the temperature.
Scene creation
Create scenes directly in the visualisation using drag and drop.
Web widgets
Flexibly extend the range of functions via web widgets.
Home control via app
Free of charge at home and also remote via the Connect module.
Voice control
Control your KNX building by voice command via Alexa.
Automatic processes
Simply set if-then rules in the KNX smart home.
Camera integration
Include IP cameras into your visualisation.
Bridges to other brands
Integrate devices from other manufacturers directly into the KNX visualisation.


More modules and functions

YOUVI Screenshot

KNX visualisation for your home and room control

Control your smart home easily and intuitively with the included YOUVI Basic software package.

Lights
Switches
Shutters
Timer
Heating
Scene creation
Web widgets
Home control via app
Voice control
Automatic processes
Camera integration
Bridges to other brands

Create your individual lighting atmosphere.

YOUVI Screenshot

More modules and functions

All-in-one device!

Includes KNX server, IP router, smart home app and visualisation – everything you need, right out of the box.

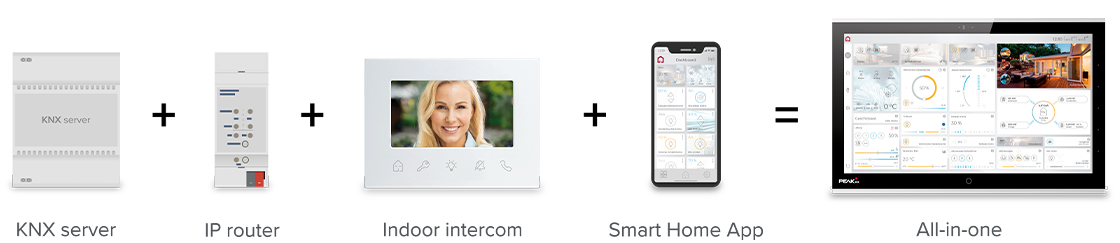

Control 16: The All-In-One Solution

A calculation that adds up. With the Control 16, you are not just getting a piece of hardware.The smart YOUVI software and add-ons turn the device into a true all-in-one solution – so there’s no need for any additional hardware.

Use it stand-alone or in client mode – the choice is yours!

Control 16 as KNX Server

All-in-one solution with YOUVI

In combination with YOUVI, the Control 16 can operate as a stand-alone KNX touch panel – without the need for an external server or IP router. This hardware-software combination is the ideal solution for single-family homes and mid-sized projects.

Control 16 as a client variant

Client solution with external server and IP router

If you already have a central control unit or an external KNX server (e.g. PEAKnx Performance Server or Gira HomeServer), the Control 16 can be integrated as a client device. For larger KNX projects in particular, a central server can offer added security and flexibility.

Open to other applications and visualisations

The Control 16 is a fully-fledged computer equipped with Windows LTSC, allowing you to use not only all Windows and web-based visualisations, but also browser-based applications, for example.

Depending on the visualisation used, SIP door intercoms with video transmission, alarm systems and energy management can also be integrated into the KNX visualisation via the touch panel.

View visualisation options
    All Windows or web-based, e.g.:
  • BabTechnologie: CubeVision
  • Gira: QuadClient, Ajax, X1
  • Home Assistant
  • Hager: Domovea
  • Enertex: EibPC
  • Symcon GmbH: IP-Symcon
  • ThinKnx
  • Loxone
  • Edomi, openHAB and many more ...
Control 16 with visualisation software

Compatibility ensured

To ensure seamless functionality, we test our hardware and software with a wide range of smart home solutions from various manufacturers. A list of tested devices and applications can be found in the table below. To quickly locate the desired function, use the corresponding filter.

Control 16 Compatibility
Filter options
Trade/device

Show selection

Integration via

Show selection

Supported functions
Manufacturer

Show selection

YOUVI licence

Show selection

Air conditioningKNXOn/off, Setpoint temperature, current temperature, HVAC control mode, setpoint shift, heating/cooling, return temperature, fan speed, ventilation angle, operating hours, error messageYOUVI Basic
Air conditioningAidoo KNXOn/Off, fan speed, setpoint temperature, current temperature, setpoint shift, heating/cooling, slats, scenes, status, error messageAirzoneAirzone Bridge
Air conditioningAidoo ProOn/Off, fan speed, setpoint temperature, current temperature, setpoint shift, heating/cooling, slats, scenes, status, error messageAirzoneAirzone Bridge
AnemometerNetatmo accountWind direction, wind speedNetatmo, Smart AnemometerNetatmo Bridge
Energy managementneoom accountPower fed into/withdrawn from the grid, power from photovoltaics, wallbox (consumption in kW), battery storage (power fed in/withdrawn/charge level in %), consumption in kW, self-sufficiency in %neoomneoom Bridge
Fingerprint sensorHTTP commandsTrigger specific building functions according to fingerprintekeyLogic Module
HeatingKNXSetpoint temperature, current temperature, setpoint shift, heating, HVAC control modeYOUVI Basic
HeatingNetatmo accountSetpoint temperature, current temperatureNetatmo, Smart Thermostat, Smart Radiator ValveNetatmo Bridge
IntercomLAN/WLANRelay(DTMF), camera stream, sound2N, IP-VersoDoor station Module
IntercomLAN/WLANRelay(DTMF), camera stream, soundAGFEODoor station Module
IntercomLAN/WLANRelay(DTMF), camera stream, soundAxisDoor station Module
IntercomLAN/WLANRelay(DTMF), camera stream, soundDoorBirdDoor station Module
IntercomLAN/WLANRelais(DTMF), soundGiraDoor station Module
IntercomLAN/WLANRelay(DTMF), camera stream, soundMetzlerDoor Station Module
IntercomLAN/WLANRelay(DTMF), camera stream, soundMobotixDoor station Module
IntercomLAN/WLANRelay(DTMF), camera stream, soundSiedleDoor station Module
IntercomLAN/WLANRelay(DTMF), camera stream, soundTCSDoor station Module
IntercomLAN/WLANRelay(DTMF), camera stream, soundWantecDoor station Module
IP cameraLAN/WLANRTSP, JPEG, MJPEGAxisCamera Module
IP cameraLAN/WLANRTSP, JPEG, MJPEGHikvisionCamera Module
IP cameraLAN/WLANRTSP, JPEG, MJPEGLupusCamera Module
IP cameraLAN/WLANRTSP, JPEG, MJPEGMobotixCamera Module
IP cameraLAN/WLANRTSP, JPEG, MJPEGReolinkCamera Module
LightKNXOn/Off, absolute dimming, stepwise dimming (via voice), RGBW, RGB, Tunable White (warm/cold light via colour temperature)YOUVI Basic
LightIkea Tradfri gatewayOn/Off, absolute dimmingIkea, tradfri LED E27, LED1842G3Tradfri Bridge
LightIkea Tradfri gatewayOn/Off, absolute dimming, RGBIkea, tradfri LED E27, LED1924G9Tradfri Bridge
LightPhilips HueOn/Off, absolute dimming, RGB, dimmer with Tunable White supportPhilipsPhilips Hue Bridge
LightYeelight accountOn/Off, absolute dimming, RGBYeelightYeelight Bridge
Multiroom sound systemBluesound accountShow and play playlists and favourites, play/pause, forward/back, repeat/shuffle, volume/muteBluesoundBluesound Bridge
Multiroom sound systemRevox accountShow and play playlists and favourites, play/pause, forward/back, repeat/shuffle, volume/muteRevoxRevox Bridge
Multiroom sound systemSonos accountShow and play playlists and favourites, play/pause, forward/back, repeat/shuffle, volume/muteSonosSonos Bridge
Multiroom sound systemtrivum serverShow and play playlists and favourites, play/pause, forward/back, repeat/shuffle, volume/mutetrivumtrivum Bridge
Rain gaugeNetatmo accountAmount of rainNetatmo, Smart Rain GaugeNetatmo Bridge
SensorsKNXBinary, brightness (lux), humidity (%), percent, temperature (°C), time (12h and 24h format), wind speed (m/s), noise (W/m2), CO2 (ppm), wind direction, pressure (Pa), current (mA), power (kW, W), active energy (Wh), numerical values, rainfall (l/m2), textYOUVI Basic
SensorsNetatmo accountTemperature, humidity, noise level, CO2 concentrationNetatmo, Smart weather station, indoor moduleNetatmo Bridge
SensorsPhilips HueBinary, brightness, temperaturePhilipsPhilips Hue Bridge
Shading devicesKNXOpen/close, slat angle, position, stepwise up or downYOUVI Basic
Shading devicesIkea Tradfri gatewayOpen/close, position, stepwise up or downIkea, FyrturTradfri Bridge
Smartphone/tabletYOUVI Mobile App/WLANPlease refer to the YOUVI scope of functionsAndroid SmartphonesConnect Module
Smartphone/tabletYOUVI Mobile App/WLANPlease refer to the YOUVI scope of functionsiOS SmartphonesConnect Module
Sockets/switchesKNXOn/OffYOUVI Basic
Sockets/switchesPhilips HueOn/OffPhilipsPhilips Hue Bridge
VentilationKNXVentilation preset (level), auto mode, boost ventilation mode, setpoint temperature, room temperature, ventilation status (%), air quality (CO2 value), humidity, filter changeYOUVI Basic
Voice control (online)Alexa Skill: PEAKnx YOUVILight, dimmer, shutters, RGBs, sockets, heatingAmazon, EchoConnect Module
Voice control (offline)ProKNX AragonLight, dimmer, shutters, sockets, heatingProKNX, AragonConnect Module
Weather stationKNXWind speed, wind direction, temperature, humidityYOUVI Basic
Weather stationNetatmo accountTemperature, atmospheric pressure, humidityNetatmo, Smart weather station, outdoor moduleNetatmo Bridge
Show all
Control 16 components

Powerful components for individual requirements

Full HD display 15.6” Full HD display
Side buttons 5 smart side buttons
Intel Core i3 processor Intel Core i3 processor
8 GB RAM 8 GB RAM
256 GB SSD 256 GB SSD drive
Integrated proximity sensor Integrated proximity sensor
Microphone Optimised microphone

Smart thermal management for continuous operation

Unlike mobile devices such as tablets, fixed PEAKnx touch panels are designed for continuous operation. The sophisticated thermal dissipation system ensures that the device runs reliably even after many years of use – without causing any marks on the wall.

No moving parts No moving parts
Metal housing Metal housing milled from a single block
Permanent operation Designed for continuous operation
Cooling by convection Cooling by convection
Smart heat management
Control 16 glass design

Endless glass design options

Whether in corporate design with your own company logo or matched to a private interior – you define the external appearance of your KNX touch panel!
You can choose between a silver, black or honey gold frame and customise the interchangeable glass covers. This makes the Control 16 a true eye-catcher in any smart home.

For new builds, renovation or retrofitting

The Control 16 can be installed either flush-mounted or as a surface-mounted version. Thanks to its ultra-slim design, the KNX touch panel appears sleek and elegant on the wall, regardless of the installation type. Alternatively, it can also be mounted completely flush with the wall. With three installation options, the Control 16 is ideal for both new smart buildings and retrofitting projects.

Flush with the wall

Visually flush with the wall

Visual highlight Visual highlight (flush with the wall)
Distance from wall: 0 mm Distance from wall: 0 mm

Flush-mounted

Flush-mounted

Floating effect Floating effect (sits flat against the wall)
Distance from wall: 7 mm Distance from wall: 7 mm

Surface-mounted

Surface-mounted

Quick installation Quick installation on a switch box
Distance from wall: 25 mm Distance from wall: 25 mm

Smart side buttons

The Control 16 features five flush-integrated side buttons (direct selection keys) on the right-hand side.These can be individually assigned to devices or http commands. In combination with the YOUVI visualisation, various logic functions can also be configured.

Control 16 Side-Buttons

More display, more power, more possibilities!

With its 15.6-inch display and a screen-to-body ratio of over 70%, the Control 16 – combined with the attractive YOUVI visualisation – offers everything needed for a powerful smart home control centre. Whether used as a stand-alone room controller or in client mode, the stylish Control 16 performs its tasks flexibly and reliably within your smart home.

PEAKnx Control 16 touch panel

PEAKnx Control 16

The Control 16 combines powerful hardware with intelligent software – for convenient control and reliable, intuitive visualisation of your KNX system.

View product

Find a dealer

Technical Details
Scope of Delivery
Data Sheet
Manuals
Control 16 dimensions

Specifications

  • Intel Dual-Core Processor, 11th generation
  • Fanless cooling by convection
  • 8 GB RAM
  • SSD hard disk with 256 GB
  • 15.6 inch Full HD LCD display
  • Automatic brightness adjustment
  • Automatic screen activation via proximity sensor
  • Resolution: 1920 x 1080 pixels
  • Multi-touch, PCAP touch technology
  • 5 side buttons
  • Integrated stereo speakers and microphone
  • Wi-Fi 2.4 GHz, 5 GHz and Bluetooth 5.2

Connections

  • 2 x USB A 2.0 front port
  • 1 x USB C 3.2 Gen2
  • 1 Gigabit Ethernet
  • KNX
  • Supply terminals: 24 V DC, GND

Software

  • Operating system: Windows IoT Enterprise LTSC
  • YOUVI Basic software package consisting of visualisation, IP router and bus monitor

Dimensions

  • Dimensions Control 16 (W x H x D): 378.4 mm x 245.5 mm x 26 mm
  • Flush-mounted box (W x H x D): 251 mm x 193 mm x 50 mm
  • Front glass (W x H x D): 378.4 mm x 231.1 mm x 1.5 mm
  • Weight: 2.15 kg
  • Weight front glass: 0.35 kg

Power Supply and Consumption

  • Supply voltage: 24 V DC, 2.4 A
  • Idle mode: 6 W
  • Full load operation: 40 W
  • Server operation without LCD: 4 W
