Home Automation Server
From €989.00
To €2,173.00
In stock

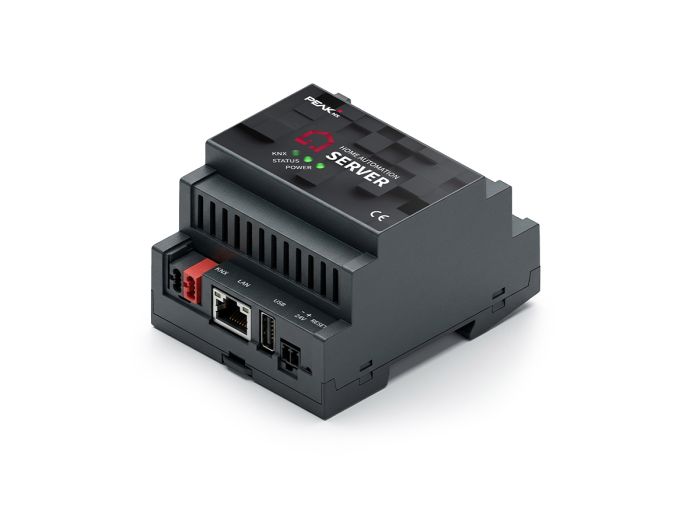

The Home Automation Server is the central KNX server solution for single-family homes and smaller smart home projects. It is ideally suited for installations without visible smart home components.
It enables flexible control via the YOUVI visualisation on virtually any end device, such as iOS or Android smartphones, tablets or Windows PCs. This makes the server particularly suitable for projects without permanently installed control units. Optionally, it can be combined with a touch panel.
Thanks to its compact design (4 DIN modules), the server can be installed on a DIN rail inside the electrical cabinet while saving valuable space. The Linux-based server offers a high level of reliability and ensures continuous operation even if one of the operating devices should fail. Integration with Alexa, Apple Home and Google Home as well as flexibly expandable bridges and modules also allows the server solution to be customised to individual requirements.
Current delivery time: 2 weeks
YOUVI home control on virtually any end device
With the included YOUVI visualisation, the Home Automation Server offers various options for home control. Users are free to choose which operating device they would like to use. In addition to control via smartphones, tablets, Windows PCs or a permanently installed smart home touch panel, voice control via Alexa or Siri (through the Connect Module) or offline via ProKNX Aragon is also possible. Control via the YOUVI smart home app (iOS/Android) is likewise supported. The KNX server is equipped with the Linux operating system for stable continuous operation.
Easy operation with YOUVI visualisation software
The included YOUVI visualisation software enables user-friendly control of (RGBW) lighting, blinds, temperature and ventilation. The customisable dashboard for touch panels can be set up easily via drag and drop. Together with the practical app, convenient home control becomes effortless.
In addition to the included YOUVI Basic software package, the system can be expanded with additional functions as required. Optional add-ons allow the integration of multiroom music control, energy management or voice control, for example. The Logic Module also enables the automation of various processes.
Versatile compatibility
Regardless of the preferred end devices – whether iOS or Android smartphones, tablets, Windows PCs or touch panels – the Home Automation Server offers maximum flexibility.
The visualisation as a Windows app is available for devices running Windows 10 or Windows 11. Windows LTSC is recommended for smooth operation.
The YOUVI iOS or Android app is available for mobile devices such as tablets and smartphones. It allows users to control blinds, temperature and lighting easily, activate scenes or monitor sensors. Further information can be found under the “Software” tab.
Enhanced security for your smart home
The Home Automation Server offers various ways to make your smart home more secure. Support for video door stations and surveillance cameras allows users to keep an overview of their entrances at all times and decide who is granted access.
The server also provides additional technical security: if one operating device should fail, control remains possible via other available devices.
The Linux operating system also provides robust protection against cyber attacks and helps to safeguard privacy reliably.
Space-saving and low-maintenance
The KNX server is installed directly inside the electrical cabinet, saving valuable space while requiring very little maintenance.
No additional hardware is required, as an integrated IP router is already included.
- Home Automation Server
- YOUVI Basic software package
- Manual
- Network connector
- Network patch cable
- KNX terminal
Equipment
- 4 x ARM Cortex-A76
- 4 GB RAM
- 32 GB flash storage
Connections
- KNX interface
- 1 x USB 2.0
- 1 Gigabit Ethernet
Dimensions
- Dimensions(W x H x D): 72 x 90 x 60 mm, 4 DIN modules
Power supply and consumption
- Supply voltage: 8-30 V DC
- Power consumption, peak load 10 W
YOUVI Basic included for reliable home control
YOUVI Basic combines three functions in one software package: visualisation, IP router and bus monitor. The KNX visualisation is created directly from the ETS project structure via ETS import. The project editor then helps to check detected devices and make any necessary adjustments for the visualisation. The visualisation is easy to use and meets high design standards. KNX devices such as blinds, lighting or heating can be controlled intuitively. The range of functions of YOUVI Basic can be flexibly extended with optional add-ons. No additional hardware is required for commissioning the smart home control system apart from the Home Automation Server and a suitable operating device. Thanks to the IP router software, no external KNX IP router is required. The included bus monitor also provides a transparent overview of the KNX network and offers extensive filtering and analysis options. The YOUVI software supports German, English and French.
Key features at a glance
- Creation of the visualisation through direct ETS import
- Scene creation via drag and drop
- Up to 5 dashboard pages with 3 different layouts
- Web widgets for integrating websites
- Graph view of sensor values (day, week, month, year)
- Energy monitoring widget
- Device filter by type, status and location
- Light and dark design
- Visualisation can also be edited by non-professional users
- Expandable with YOUVI add-ons (e.g. sound systems, door stations, voice control)
- Supported languages: German, English, French
You can find the complete range of functions under “All YOUVI features”.
- Lighting
- Sockets and switchable devices
- Shutters
- Blinds
- Dimmers (also tunable white)
- RGB(W) lights
- Heating
- Ventilation
- Weather stations
Supported camera streams (Camera Module):
- Formats: RTSP, MJPEG, JPEG
- e.g. Mobotix, Hikvision, Reolink, Axis
- Binary
- CO2 (ppm)
- Pressure (Pa)
- Humidity (%)
- Brightness (lux)
- Noise (W/m², dB)
- Power (W, kW)
- Percentage values
- Rain amount (l/m²)
- Current (mA)
- Temperature (°C)
- Wind speed (m/s)
- Wind direction
- Active energy (kWh)
- Time (12h / 24h)
- Further numerical values (ETS data point types 7.x, 8.x, 9.x)
- IP-capable devices (Control 12, Controlmicro, Controlpro or PCs with USB Connector) can function as KNX IP routers
- Supports up to 15 IP tunnelling connections
- Support for EIBlib/IP, multicast and extended frames
- Filter tables for targeted transmission of group addresses
- Logs all telegrams on the KNX bus
- Tabular display
- Extensive filter and export options
- Supports analysis and troubleshooting
- Available for iOS and Android
- Access within the home network (WiFi) included in YOUVI Basic
- Access from on the go via YOUVI Connect
You can find the complete range of functions under “All YOUVI features”.
> YOUVI Connect Module: Building control from on the go via smart home app and on site via voice control (online/offline)
> YOUVI Camera Module: Integration of JPEG, MJPEG and RTSP streams from surveillance cameras into the visualisation
> YOUVI Logic Module: Creation of logics, routines and presence simulations in the user-friendly logic editor
> YOUVI Door Station Module: Integration of SIP door stations into the visualisation
> YOUVI Airzone Bridge: Integration of air conditioning systems with Airzone
> YOUVI Bluesound Bridge: Integration of a Bluesound multiroom sound system
> YOUVI IKEA Tradfri Bridge: Integration of various IKEA Tradfri devices
> YOUVI neoom Bridge: Integration of the Internet of Energy platform neoom Connect
> YOUVI Netatmo Bridge: Integration of Netatmo thermostats and weather stations
> YOUVI Philips Hue Bridge: Integration of various Philips Hue devices
> YOUVI Revox Bridge: Integration of a Revox multiroom sound system
> YOUVI Sonos Bridge: Integration of a Sonos multiroom sound system
> YOUVI trivum Bridge: Integration of a trivum multiroom sound system
> YOUVI Yeelight Bridge: Integration of Yeelight lights
Tutorial videos can be found on the PEAKnx YouTube channel:
Go to YouTube channel
Please note:
The trial version is designed to let you experience the look and feel of the YOUVI software. Control of a real building is only possible in conjunction with PEAKnx hardware.
A KNX project can be loaded and tested, but control remains disabled in the demo version. The YOUVI Basic software package can be tested for 90 days.
