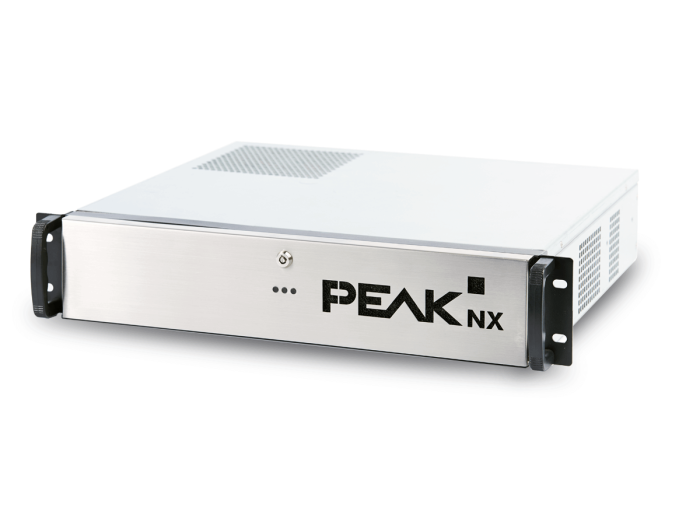

Performance Server incl. Visualisation

From €2,499.00

To €3,575.50

In stock

SKU
PNX22-10001

The Performance Server brings the YOUVI visualisation to any end device. No matter if Windows PC, touch panel, iOS or Android Smartphone: With the included software package, reliable control of the KNX Smart Home is guaranteed. In addition, the building can also be operated with the Connect Module via Alexa voice control or outside the home network via a smartphone app. The KNX server is the ideal basis for this. It is particularly low-maintenance due to the Windows LTSC system and offers optimal protection against technically induced failures.

> Prices for systemintegrators and dealers

Current delivery time: 2 weeks

Customize Performance Server incl. Visualisation
1 x Performance Server incl. Visualization   + €2,499.00

* Required Fields

Your Customization
    Performance Server incl. Visualization - 01
    Performance Server incl. Visualisation

    In stock

    €2,499.00

    30 Days Money Back
    Free support
    Fast delivery

    YOUVI home control on any device

    The Performance Server provides YOUVI visualisation for house control on various devices. Users have the freedom to choose their preferred operating device. In addition to controlling it with a Windows PC or a Smart Home touch panel, you can also use voice commands with Alexa (via the Connect Module) or control it through the YOUVI smart home app (iOS/Android). The KNX server comes with a Windows 10 IoT Enterprise LTSC system, reducing maintenance and software issues.

    YOUVI product presentation

    Protection during technical failures in the smart home

    In the context of smart home systems, the Performance Server offers added security during technical failures. The remote maintenance software and exchangeable SSD hard disk facilitate remote maintenance work.

    Additional security for the KNX system

    For reliable data backup, an optional backup package includes a second SSD hard disk and a recovery stick. This package ensures data security, and the recovery stick facilitates OS recovery.

    Scope of delivery
    • Performance Server
    • KNX plug
    • Hard drive cage
    • Power supply

    Optional backup package

    • 250 GB SSD hard drive
    • Recovery USB flash-drive
    Downloads

    You will find current software, manuals, and other documents with information about the Performance Server in our download area.

    Features

    • Quad-core processor
    • Low-noise fans
    • Replaceable hard drive: SSD 120 GB
    • RAM: 4 GB
    • LAN
    • Operating system: Windows 10 IoT Enterprise LTSC
    • YOUVI Software Package Basic included, consisting of visualisation software, IP router, and bus monitor
    • 19-Inch Aluminum Case

    Connections

    • 2 x USB 2.0
    • 2 x USB 3.2 Gen1
    • DP V1.2
    • Ethernet GLAN
    • HDMI V1.4
    • KNX
    • Line In/Line Out
    • PS/2

    Dimensions

    • Dimensions (W x H x D): 430 mm x 90 mm x 400 mm

    Power Supply and Consumption

    • Supply Voltage: 110 to 230 V
    • Max. power consumption: 40 W (depending on hard drive storage)
    • Max. power-on consumption: 80 W
    • Standby operation: 2 W

    General

    • Weight: 7.6 kg

    YOUVI Basic for reliable home control included

    YOUVI Basic combines three functions in one software package: visualisation, IP router and bus monitor. The KNX visualisation is created by an ETS import directly from the ETS project structure. With the project editor you can check the imported project, so that further adjustments for the visualisation are quickly realized. The visualisation is easy to use and meets high design standards. It allows to intuitively control KNX devices such as blinds, light or heating. The functional range of YOUVI Basic can be extended as needed by different add-ons. No additional hardware is required to start up the smart home control system, apart from the Performance Server and the appropriate operating device. Thanks to the IP router software, an external KNX IP router is not necessary. The included bus monitor also provides a transparent overview of the KNX network and offers extensive filter and analysis options. The YOUVI software supports the languages German, English and French.

    YOUVI product presentation

    Most important features at a glance

    YOUVI Basic Visualisation
    Highlights
    • Creating the visualisation from a direct ETS import
    • Create scenes via drag & drop
    • Up to 5 different dashboard pages with 3 different dashboard layouts
    • Web widgets for the integration of web pages into the visualisation
    • Diagram view of the sensor values, display: daily, weekly, monthly and yearly view
    • Widget for energy monitoring
    • Device filter by type, device state and location
    • Light and dark design
    • Visualisation editable even by laymen
    • Add-ons, for example for the integration of sound systems, door stations and voice control
    • Supported languages: English, French, German

    You can find the complete range of functions of the app under "All YOUVI features".

    Supported devices
    • Lights
    • Sockets and switchable devices
    • Shutters
    • Blinds
    • Dimmers, also tunable white
    • RGB(W) Lights
    • Heating
    • Ventilation
    • Weather stations

    Supported camera streams of the camera module

    • Formats: RTSP, MJPEG, JPEG
    • For example from Mobotix, Hikvision, Reolink, Axis
    Supported sensors
    • Active Energy (kWh)
    • Binary
    • Brightness (lux)
    • CO2 (ppm)
    • Current (mA)
    • Humidity (%)
    • Noise (W/m², dB)
    • Percent
    • Power (W, kW)
    • Pressure (Pa)
    • Rain amount sensor (l/m²)
    • Wind speed (m/s)
    • Wind direction
    • Temperature (°C)
    • Time (12h and 24h format)
    • Further numerical values (ETS data point types 7.x, 8.x, 9.x)
    YOUVI Basic KNXnet/IP router
    • IP-capable devices (Control 12, Controlmicro, Controlpro, Laptops together with USB-Connector) function as KNX IP routers, additional hardware becomes superfluous
    • Supports up to 15 IP tunneling connections, EIBlib/IP, multicast and extended frames
    • Individual transmission of incoming and outgoing group addresses via filter table
    YOUVI Basic Bus Monitor
    • Logs all telegrams that are transmitted on the KNX bus in tabular form
    • Offers numerous filter and export options
    • Occurring faults are quickly found and solved
    YOUVI Basic Mobile App
    • For iOS or Android
    • Access via WiFi (home network) included in YOUVI Basic
    • Cloud connection for on-the-go access included in YOUVI Connect module

    You can find the complete range of functions of the mobile app under "All YOUVI features".

    YOUVI Mobile Apat App StoreYOUVI Mobile App at Google Play

    Add-Ons to extend YOUVI Basic

    > YOUVI Connect Module: Building control on the road via Smart Home App and on site via voice control (online/offline)

    > YOUVI Camera Module: Integration of JPEG, MJPEG and RTSP streams from the surveillance cameras into the visualisation

    > YOUVI Logic Module: Creation of logics, routines and presence simulations in the user-friendly logic editor

    > YOUVI Door Station Module: Integration of SIP door stations into the visualisation

    > YOUVI IKEA Tradfri Bridge: Integration of various IKEA Trafri devices

    > YOUVI Netatmo Bridge: Integration of Netatmo thermostats and weather stations into the visualisation

    > YOUVI Ntuity Bridge: Integration of the Internet of Energy platform Ntuity

    > YOUVI Sonos Bridge: Integration of a Sonos Multiroom system into the visualisation

    > YOUVI trivum Bridge: Integration of a trivum Multiroom system into the visualisation

    YOUVI trial version

    > Download free trial version

    Please note: The free trial version gives you the opportunity to experience the look and feel of the YOUVI software. However, YOUVI can only be run in conjunction with PEAKnx hardware! For this reason you can upload a KNX project and test the software, but you cannot actually control your building. After download and installation, the YOUVI Basic software package is available for 90 days for testing.
