Controlmicro
8“ KNX smart home control panel

With its brilliant multi-touch display, the Controlmicro is the intelligent control panel for the entire KNX smart home.

Product Brochure

Technical Details

To the Shop

Unlimited variety in small dimensions

Extensive KNX visualisation included

Server, IP router, visualisation and app in one device

Usable as stand alone or as client

Open for other visualisations and applications

Guaranteed compatibility with other brands

Powerful components for top performance

High-quality fabrication with elegant design

Diverse installation variants

KNX visualisation for your home and room control

Lights (dimmers, RGB luminaires)

Create the right atmosphere with lighting.

Sockets & switches

View devices and turn them on and off.

Shutters & blinds

Raise or lower shading devices as needed.

Timer

Specify when the function should be executed.

Heating

Adjust your home to a comfortable temperature.

Scene creation

Create scenes directly in the visualisation using drag and drop.

Web widgets

Flexibly extend the range of functions via web widgets.

Home control via app

Free of charge at home and with the Connect module also remotely.

Voice control

Control your KNX building by voice command via Alexa.

Automatic processes

Set if-then rules in the KNX smart home simply by yourself.

Camera integration

Include IP cameras in your visualisation.

Bridges to other brands

Integrate devices from other manufacturers directly into the KNX visualisation.

More modules and functions

KNX visualisation for your home and room control

With the included YOUVI Basic software package, you control your smart home easily and intuitively.

Lights

Switches

Shutters

Timer

Heating

Scene creation

Web widgets

Home control via app

Voice control

Automatic processes

Camera integration

Bridges to other brands

Create the right atmosphere with lighting.

More modules and functions

All in one device!

Touch panel, KNX server, IP router, visualisation and smart home app

A calculation that works. The Controlmicro is not just a piece of hardware. The included YOUVI software turns the device into a true all-in-one wonder, so you do not need external hardware.

Stand alone or as a client in the network – the choice is yours!

All-in-one solution in combination with YOUVI

In combination with YOUVI, you can run the Controlmicro as a stand-alone smart home control panel that is not dependent on an external server or IP router. Especially for family homes and medium-sized automation projects, this unit of hardware and software is a good solution.

Client solution in combination with external server and IP router

If you already have a central control unit or an external KNX server (e.g. PEAKnx Performance Server or Gira HomeServer), you can connect the Controlmicro as a client variant. Especially for larger KNX projects, a central server can provide additional security.

Open for other applications and visualisations

The Controlmicro is a fully-fledged computer equipped with Windows LTSC, which not only enables the use of all Windows and web-based visualisations, but is also suitable for browser applications, for example. Depending on the used visualisation, SIP door intercoms with video transmission, alarm systems and energy management can also be displayed in the KNX visualisation via the smart home control panel.

View visualisation options

Gira: QuadClient, X1
Loxone
Edomi, openHAB and many more ...

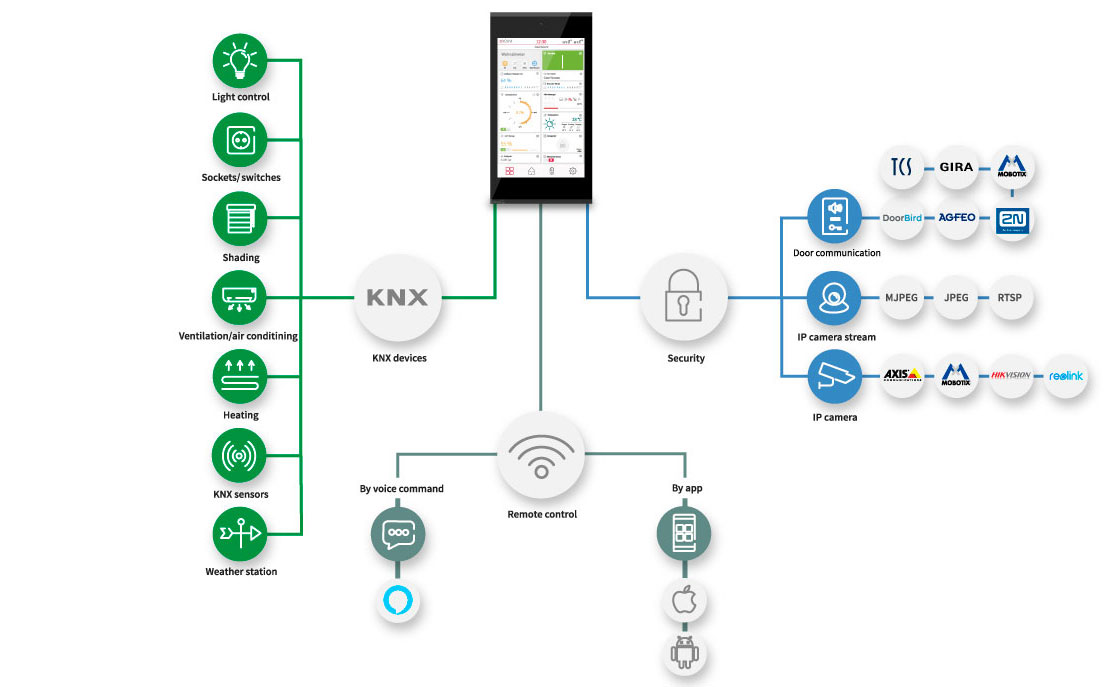

Compatibility guaranteed

To ensure smooth functionality, we test our hardware and software with a variety of smart home solutions from different manufacturers. You can find a list of the tested devices and applications in the table below. Use the filter function to quickly find the desired function.

Powerful components for top performance

8" Full HD display with PCAP touch

Integrated proximity sensor

Intel Quad-Core processor

4 GB RAM

Broadband loudspeaker

Optimized microphone

High-quality fabrication

No moving parts

Aluminum frame milled from one piece

Anti-theft protection (for public use)

Designed for permanent operation

Cooling by convection

Elegant Design

Dark or light frame

Integrated LED backlighting

YOUVI visualisation in light and dark mode

Stylish variants – easy mounting

The Controlmicro can be mounted quickly and easily in portrait or landscape format. In addition to standard surface mounting, the small smart home control center can also be flush-mounted in the wall for a more refined look in the interior.

Flush-mounted

Optical accent (flush with the wall)

Distance from wall: 0 mm

Surface-mounted

Quick mounting on a switch box

Distance from wall: 13 mm

Landscape format

Portrait or landscape format

Surface- or flush-mounted

Refine your smart home project with a Controlmicro!

The Controlmicro is offered in two design variants and is highly versatile. It can be used either as an all-in-one solution or as a client in conjunction with an external server. Design and functionality received the Red Dot Award: Product Design 2021.

PEAKnx Controlmicro

The 8-inch KNX control panel Controlmicro for room and building can be mounted flexibly in portrait or landscape format.

To the shop

Dealers close by

PEAKnx Controlmicro PoE

The Controlmicro with practical PoE supply. Enjoy all the benefits of the KNX panel without having to rely on a separate power supply.

To the shop

Dealers close by

Technical details

Scope of delivery

Factsheet

Compatibility

Specifications

Intel Quad-Core processor
eMMC memory with 64 GB
4 GB RAM
8 inch TFT LED LCD panel
Resolution: 1200 x 1920 pixels
Multi-touch through PCAP touch technology
Broadband stereo loudspeaker
Optimized microphone
WLAN/Bluetooth: 2,4 & 5 GHz/5.0
Fanless cooling by convection
Integrated CO2 sensor
Adaptive brightness
Integrated proximity sensor
High-quality aluminium housing
Anti-theft protection
LED Ambientlight

Software

Operating system: Windows IoT Enterprise LTSC
YOUVI Basic software package consisting of visualisation, IP router and bus monitor (modules can be purchased seperately)

Ports

100 Mbit-Ethernet
MicroSD card slot
KNX

Dimensions

Size of the panel without mounting body: 223 x 125 x 13 mm
Suitable switch box for mounting: Standard screw spacing: 60 mm, depth: min. 35 mm

Supply

Plug with screw terminal, supply voltage: 24 V DC 2,4 A

Do you have further questions about the Controlmicro?

Then contact us at +49 (0) 6151 - 279 18-24 or send us a message via the contact form.

Air conditioning	KNX	On/off, Setpoint temperature, current temperature, HVAC control mode, setpoint shift, heating/cooling, return temperature, fan speed, ventilation angle, operating hours, error message		YOUVI Basic
Air conditioning	Aidoo KNX	On/Off, fan speed, setpoint temperature, current temperature, setpoint shift, heating/cooling, slats, scenes, status, error message	Airzone	Airzone Bridge
Air conditioning	Aidoo Pro	On/Off, fan speed, setpoint temperature, current temperature, setpoint shift, heating/cooling, slats, scenes, status, error message	Airzone	Airzone Bridge
Anemometer	Netatmo account	Wind direction, wind speed	Netatmo, Smart Anemometer	Netatmo Bridge
Energy management	neoom account	Power fed into/withdrawn from the grid, power from photovoltaics, wallbox (consumption in kW), battery storage (power fed in/withdrawn/charge level in %), consumption in kW, self-sufficiency in %	neoom	neoom Bridge
Fingerprint sensor	HTTP commands	Trigger specific building functions according to fingerprint	ekey	Logic Module
Heating	KNX	Setpoint temperature, current temperature, setpoint shift, heating, HVAC control mode		YOUVI Basic
Heating	Netatmo account	Setpoint temperature, current temperature	Netatmo, Smart Thermostat, Smart Radiator Valve	Netatmo Bridge
Intercom	LAN/WLAN	Relay(DTMF), camera stream, sound	2N, IP-Verso	Door station Module
Intercom	LAN/WLAN	Relay(DTMF), camera stream, sound	AGFEO	Door station Module
Intercom	LAN/WLAN	Relay(DTMF), camera stream, sound	Axis	Door station Module
Intercom	LAN/WLAN	Relay(DTMF), camera stream, sound	DoorBird	Door station Module
Intercom	LAN/WLAN	Relais(DTMF), sound	Gira	Door station Module
Intercom	LAN/WLAN	Relay(DTMF), camera stream, sound	Metzler	Door Station Module
Intercom	LAN/WLAN	Relay(DTMF), camera stream, sound	Mobotix	Door station Module
Intercom	LAN/WLAN	Relay(DTMF), camera stream, sound	Siedle	Door station Module
Intercom	LAN/WLAN	Relay(DTMF), camera stream, sound	TCS	Door station Module
Intercom	LAN/WLAN	Relay(DTMF), camera stream, sound	Wantec	Door station Module
IP camera	LAN/WLAN	RTSP, JPEG, MJPEG	Axis	Camera Module
IP camera	LAN/WLAN	RTSP, JPEG, MJPEG	Hikvision	Camera Module
IP camera	LAN/WLAN	RTSP, JPEG, MJPEG	Lupus	Camera Module
IP camera	LAN/WLAN	RTSP, JPEG, MJPEG	Mobotix	Camera Module
IP camera	LAN/WLAN	RTSP, JPEG, MJPEG	Reolink	Camera Module
Light	KNX	On/Off, absolute dimming, stepwise dimming (via voice), RGBW, RGB, Tunable White (warm/cold light via colour temperature)		YOUVI Basic
Light	Ikea Tradfri gateway	On/Off, absolute dimming	Ikea, tradfri LED E27, LED1842G3	Tradfri Bridge
Light	Ikea Tradfri gateway	On/Off, absolute dimming, RGB	Ikea, tradfri LED E27, LED1924G9	Tradfri Bridge
Light	Philips Hue	On/Off, absolute dimming, RGB, dimmer with Tunable White support	Philips	Philips Hue Bridge
Light	Yeelight account	On/Off, absolute dimming, RGB	Yeelight	Yeelight Bridge
Multiroom sound system	Bluesound account	Show and play playlists and favourites, play/pause, forward/back, repeat/shuffle, volume/mute	Bluesound	Bluesound Bridge
Multiroom sound system	Revox account	Show and play playlists and favourites, play/pause, forward/back, repeat/shuffle, volume/mute	Revox	Revox Bridge
Multiroom sound system	Sonos account	Show and play playlists and favourites, play/pause, forward/back, repeat/shuffle, volume/mute	Sonos	Sonos Bridge
Multiroom sound system	trivum server	Show and play playlists and favourites, play/pause, forward/back, repeat/shuffle, volume/mute	trivum	trivum Bridge
Rain gauge	Netatmo account	Amount of rain	Netatmo, Smart Rain Gauge	Netatmo Bridge
Sensors	KNX	Binary, brightness (lux), humidity (%), percent, temperature (°C), time (12h and 24h format), wind speed (m/s), noise (W/m2), CO2 (ppm), wind direction, pressure (Pa), current (mA), power (kW, W), active energy (Wh), numerical values, rainfall (l/m2), text		YOUVI Basic
Sensors	Netatmo account	Temperature, humidity, noise level, CO2 concentration	Netatmo, Smart weather station, indoor module	Netatmo Bridge
Sensors	Philips Hue	Binary, brightness, temperature	Philips	Philips Hue Bridge
Shading devices	KNX	Open/close, slat angle, position, stepwise up or down		YOUVI Basic
Shading devices	Ikea Tradfri gateway	Open/close, position, stepwise up or down	Ikea, Fyrtur	Tradfri Bridge
Smartphone/tablet	YOUVI Mobile App/WLAN	Please refer to the YOUVI scope of functions	Android Smartphones	Connect Module
Smartphone/tablet	YOUVI Mobile App/WLAN	Please refer to the YOUVI scope of functions	iOS Smartphones	Connect Module
Sockets/switches	KNX	On/Off		YOUVI Basic
Sockets/switches	Philips Hue	On/Off	Philips	Philips Hue Bridge
Ventilation	KNX	Ventilation preset (level), auto mode, boost ventilation mode, setpoint temperature, room temperature, ventilation status (%), air quality (CO2 value), humidity, filter change		YOUVI Basic
Voice control (online)	Alexa Skill: PEAKnx YOUVI	Light, dimmer, shutters, RGBs, sockets, heating	Amazon, Echo	Connect Module
Voice control (offline)	ProKNX Aragon	Light, dimmer, shutters, sockets, heating	ProKNX, Aragon	Connect Module
Weather station	KNX	Wind speed, wind direction, temperature, humidity		YOUVI Basic
Weather station	Netatmo account	Temperature, atmospheric pressure, humidity	Netatmo, Smart weather station, outdoor module	Netatmo Bridge
