Controlmini surface-mounted frame for Busch Controlpanel and ComfortPanel 9'' & 12,1''

€299.00
In stock
SKU
PNX12-10009

The KNX Touch Panel Controlmini is the perfect alternative to the Busch Controlpanel or ComfortPanel 9’’ or 12’’. The modern operating panel can easily display the entire KNX building control system on its generous 11.6-inch Full HD display. Thanks to the matching adapter, both KNX touch panels can be exchanged without any problems. The surface-mounted frame allows the Controlmini to be attached directly to the flush-mounted box of many different panels (see below).

You can find the complete replacement set here.

Please note: The Controlmini requires a power supply of 24 V DC/2.4 A. To use the Controlmini in the corresponding flush-mounted box an additional power supply may be necessary.

> Prices for systemintegrators and traders

30 Days Money Back
Free support
Fast delivery

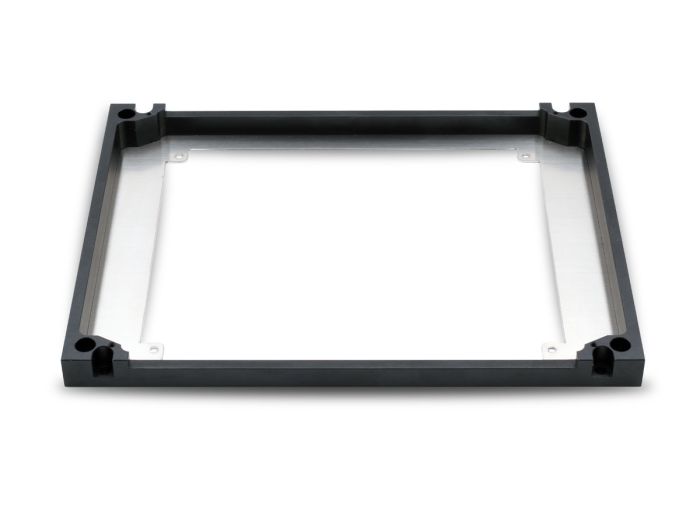

main product photo

The surface-mounted frame for replacing the Busch Controlpanel, ComfortPanel 9" & 12,1" and many others (see below) is of high-quality workmanship. The aluminium frame is milled from one block and supports the heat dissipation of the Controlmini. The integrated stainless steel plate is used for mounting on the corresponding flush-mounted box. The combination of these two components guarantees stability and a high durability.

To fix the Controlmini the surface-mounted frame is attached directly to the corresponding flush-mounted box – drilling new holes is therefore not necessary.

Scope of delivery
  • Surface-mounted frame for Busch Controlpanel or ComfortPanel 9'' & 12,1''
  • 4 pcs. M3x12 countersunk screws for panel mounting
Downloads
  • Dimensions (W x H x D): 258 mm x 199 mm x 17 mm
  • Weight: 238 g

Compatible control panels:

  • Busch-ComfortPanel 9“ (8136/09-811, 8136/09-825)
  • Busch-ComfortPanel 12,1“ (8136/12-811, 8136/12-825)
  • ABB Raumpanel / Controlpanel (6136/30M-500, 6136/100M-500, 6136/100C-500)
  • Busch-Jaeger Controlpanel color (6136/100CB-102, 6936/100CB-102, 6136/100C-102, 6936/100C-102)
  • Busch-Jaeger Raumpanel (monochrom) / Controlpanel (monochrom, color) (6136/100C-101, 6136/100M-101, 6136/30M-101, 6136/100CB-101; 6936/100C-101, 6936/100M-101, 6936/30M-101, 6936/100CB-101)
  • ABB SMARTtouch (monochrome, colour) (6136/100C-500-102, 6136/100CB-102, 6936/100C-102, 6936/100CB-102, 6136/100C-500-101, 6136/100CB-101, 6936/100C-101, 6936/100CB-101)

Compatible flush-mounted boxes:

  • 8136/01 UP-500
  • 8136/01 UP
  • 6136/UP
