Controlmicro Adapter: Merten Touch Panel 7

In stock

The KNX touch panel Controlmicro is the perfect alternative to the Merten Touch Panel 7. The modern operating panel can easily display the entire KNX building control system on its generous 8-inch high resolution display. Thanks to the matching adapter, both KNX touch panels can be exchanged without any problems. The adapter allows the Controlmicro to be attached directly to the flush-mounted box of Merten or Feller panels (see tab "Compatibility").

You can find the complete replacement set here.

Please note: The Controlmicro requires a power supply of 24 V DC/2.4 A. To use the Controlmicro in the corresponding flush-mounted box, an additional power supply may be necessary.

30 Days Money Back
Free support
Fast delivery

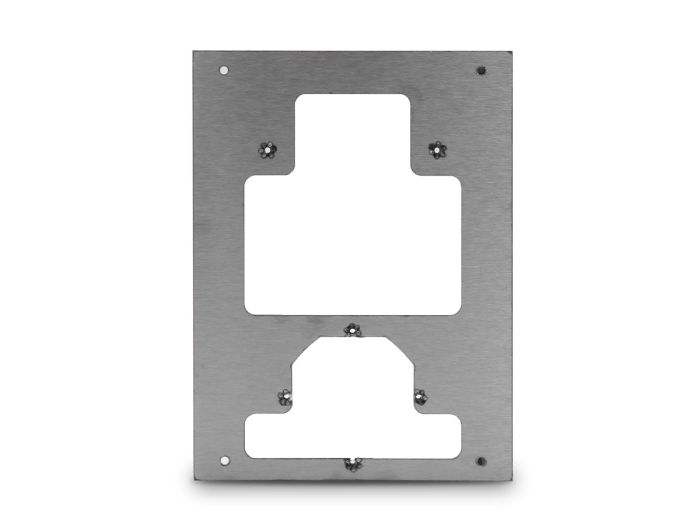

This top-quality adapter allows the mounting of the Controlmicro into the flush-mounted box of a Merten Touch Panel 7. For fixing the panel into the corresponding flush-mounted box, the adapter plate is screwed to the flush-mounted box and the Controlmicro is fixed to it – thus drilling new holes is not necessary.

You can find the complete replacement set here.

Scope of delivery
  • Adapter for Merten Touch Panel 7
  • 4 countersunk screws for panel mounting
  • Dimensions (W x H x D): 195 mm x 145 mm x 1 mm
  • Weight: 128 g

Compatible control panels:

  • Feller Home-Panel 7
  • Merten Touchpanel 7 MEG6260-1007
  • Schneider Electric Touch-Panel 7 MTN6260-0007


Compatible flush-mounted boxes:

  • MEG6270-0003
  • MTN6270-0003
  • Agro 9926.90
