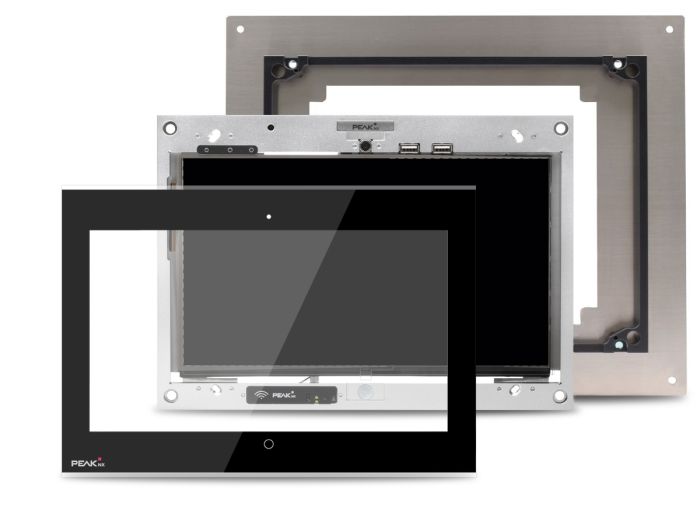

Control 12 replacement kit: Jung Panel PCT 10

From €2,899.00

To €3,867.00

In stock

SKU
PNX12-10019

The KNX touch panel Control 12 is the perfect alternative to the Jung Panel PCT 10. The modern operating panel can easily display the entire KNX building control system on its generous 11.6-inch Full-HD display. In addition to the included YOUVI software, any other Windows- or web-based visualisation can be used for building control. Users thus not only receive an elegant KNX operating device with a higher resolution display compared to the replacement device, but also an appealing visualisation of the home control system. Thanks to the adapter contained in the replacement set, the Control 12 is quickly installed in the previous flush-mounted box – without the need for any further chiselling work.

Please note: The Control 12 requires a power supply of 24 V DC/2.4 A. To use the Control 12 in the corresponding flush-mounted box, an additional power supply may be necessary.

Current delivery time: 2 weeks

Configure and add to cart
Customize Control 12 replacement kit: Jung Panel PCT 10
1 x Control 12 replacement kit: Jung Panel PCT 10   + €2,899.00

* Required Fields

Your Customization
    Control 12 Set: Jung Panel PCT 10 - 01
    Control 12 replacement kit: Jung Panel PCT 10

    In stock

    €2,899.00

    All prices incl. 19 % VAT.
    30 days return
    Free support
    Fast delivery

    Control 12: The reliable KNX Smart Home solution

    The Control 12 is a reliable 11.6-inch multi-touch panel with integrated KNX interface, high-quality design, powerful performance and tested industrial components. As an alternative for the Jung Panel PCT 10, the Control 12 also covers all common functions of KNX building control. Thus the states of the most common devices (e.g. light, blinds, heating or dimmer) can be displayed and controlled without any problems. In addition to the area of house and room control, the Control 12 can also be used as a status and information display or as an intercom for door communication systems.

    The ideal replacement for the Jung Panel PCT 10

    The Control 12 is the perfect replacement device for the old Jung Panel PCT 10. It is a full-fledged computer equipped with Windows 10 LTSC, which enables the use of all Windows- and web-based visualisation systems (e.g. Gira QuadClient, X1, or CubeVision from BAB-Tec). The desired visualisation can be shown on the larger and higher-resolution display without any problems. Or you can use the included visualisation YOUVI, which automatically creates itself from the ETS project and fulfils the highest design demands. In addition, users benefit from the features provided by Windows, such as fast navigation using wiping gestures or eye-friendly operation in the darkened night mode. The preinstalled Windows LTSC reduces maintenance and software problems as no Windows updates are allowed except for security updates. Browser applications, e.g. for playing music on external speakers, can also be used via the Control 12. The flat Control 12 becomes a real eye-catcher in the KNX Smart Home with an individually designed glass cover. Its low installation depth ensures that it can be installed almost flush with the wall without the need for a new flush-mounted box.

    More about the Control 12

    YOUVI: The All-in-One package for KNX home control

    The YOUVI Basic software package is also included in the scope of delivery. The KNX software includes visualisation, IP router and bus monitor software. Thanks to YOUVI and the integrated KNX interface of the Control 12, the execution of all basic control tasks of a KNX smart home is possible without the need to access an external server or IP router. With the YOUVI modules, the range of functions can be flexibly extended.

    More about YOUVI

    Installation

    anleitung1 anleitung2 anleitung3 anleitung4

    Easy replacement of the old panel

    The installation of the PEAKnx Control 12 in the old flush-mounted box is done in just a few simple steps:

    1. Switch off the power supply and remove your old control panel from the flush-mounted box.
    2. Use the PEAKnx adapter frame and attach it to the flush-mounted box with the respective Jung screws.
    3. Attach the 24 V wires from the power supply to the screw terminals (GND, 24 V) of the Control 12. Connect the KNX and network cables to the panel. Attach the Control 12 to the black frame of the adapter using the supplied screws.
    4. Insert the glass cover into the magnet holders.
    Scope of delivery
    • Control 12
    • Control 12 glass cover
    • YOUVI software package basic
    • Assembly and operating instructions
    • Network connector
    • Network patch cable
    • Certified cleaning cloth (5 pieces)
    • Leaflet for cardboard boxes
    • Surface-mounted frame for the Jung Panel PCT 10
    • Four M3x12 countersunk screws for panel installation
    Downloads

    Current software, manuals and other documents with information about the Control 12 can be found in our download area.

    Specifications

    • Intel Dual-Core processor, 11th generation
    • Fanless convection cooling
    • 4 GB RAM
    • 128 GB SSD hard drive
    • 11.6 inch Full HD LCD panel with LED backlighting
    • Resolution 1920 x 1080 pixels
    • Adaptive brightness
    • Automatic switching on of the screen via
      proximity sensor
    • Multi-touch, PCAP touch technology
    • 5 megapixels webcam
    • Broadband stereo speakers
    • Optimised microphone with room characteristics
    • WiFi 2,4 GHz, 5 GHz, Bluetooth: 5.2

    Ports

    • 2 x USB A 2.0 (front port)
    • 1 x USB C 3.2 Gen2
    • 1000 Mbit Ethernet
    • KNX
    • Supply terminals: 24 V DC, GND

    Software

    • Operating system: Windows 10 IoT Enterprise LTSC
    • YOUVI software package basic

    Dimensions

    • Dimensions Control 12 (W x H x D): 297 mm x 210 mm x 22.5 mm
    • Dimensions flush-mounted box (W x H x D): 251 mm x 193 mm x 50 mm
    • Dimensions glass cover (W x H x D): 297 mm x 210 mm x 0.7 mm

    Supply and power consumption

    • Supply voltage: 24 V DC 2.4 A
    • Operation (idle): 6 W
    • Operation (full-load): 30 W
    • Server operation without LCD: 4 W

    Surface-mounted frame for the Jung Panel PCT 10

    • Dimensions (W x H x D): 314 mm x 259 mm x 18 mm
    • Weight: 520 g

    Compatible control panels:

    • Jung Panel PCT 10
