Visualisation for KNX smart homes

The YOUVI smart home solution enables you to control your KNX installation easily and intuitively. From home or on the go.

YOUVI Control: LightsYOUVI Control: HeatingYOUVI Control: SwitchesYOUVI Control: DimmerYOUVI Control: ShuttersYOUVI Control: TimerYOUVI Control: Weather sensorsYOUVI Control: Temperature insideYOUVI Control: Temperature outsideYOUVI Control: Alexa voice controlYOUVI Control: Window sensorsYOUVI Control: CameraYOUVI Control: Smartphone

Home control with YOUVI

Lights (Dimmers, RGB luminaires)
Create the right atmosphere with lighting.
Sockets & switches
View devices and turn them on and off.
Shutters & blinds
Raise or lower shading devices as needed.
Timer
Specify when the function should be executed.
Heating
Adjust your home to a comfortable temperature.
Scene creation
Create scenes directly in the visualisation using drag and drop.
Web widgets
Flexibly extend the range of functions via web widgets.
Home control via app
Free of charge at home and with the Connect module also remotely.
Voice control
Control your KNX building by voice command via Alexa.
Automatic processes
Set if-then rules in the KNX smart home simply by yourself.
Camera Integration
Include IP cameras in your visualisation.
Bridges to other brands
Integrate devices from other manufacturers directly into the KNX visualisation.

Intuitive usability with a
maximum of functionality

YOUVI Dashboard background
YOUVI Dashboard navigation
YOUVI Dashboard Element 1
YOUVI Dashboard Element 2
YOUVI Dashboard Element 3
YOUVI Dashboard Element 4YOUVI Dashboard Element 5
YOUVI Dashboard Element 6
YOUVI Dashboard Element 7
YOUVI Dashboard Element 8
YOUVI Dashboard Element 9
YOUVI Dashboard Element 10
YOUVI Dashboard Element 11
YOUVI Dashboard Element 12
Maximum 3 clicks

Maximum 3 clicks to control the desired device

Optimal overview

Room buttons provide an optimal overview

Red Dot Design Award

Winner of the Red Dot Design Award

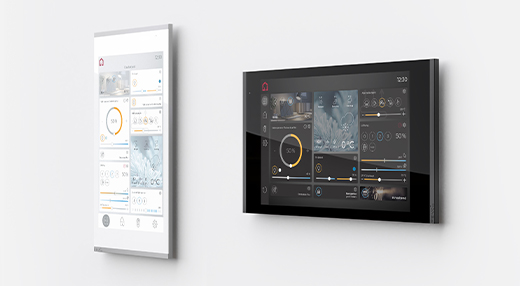

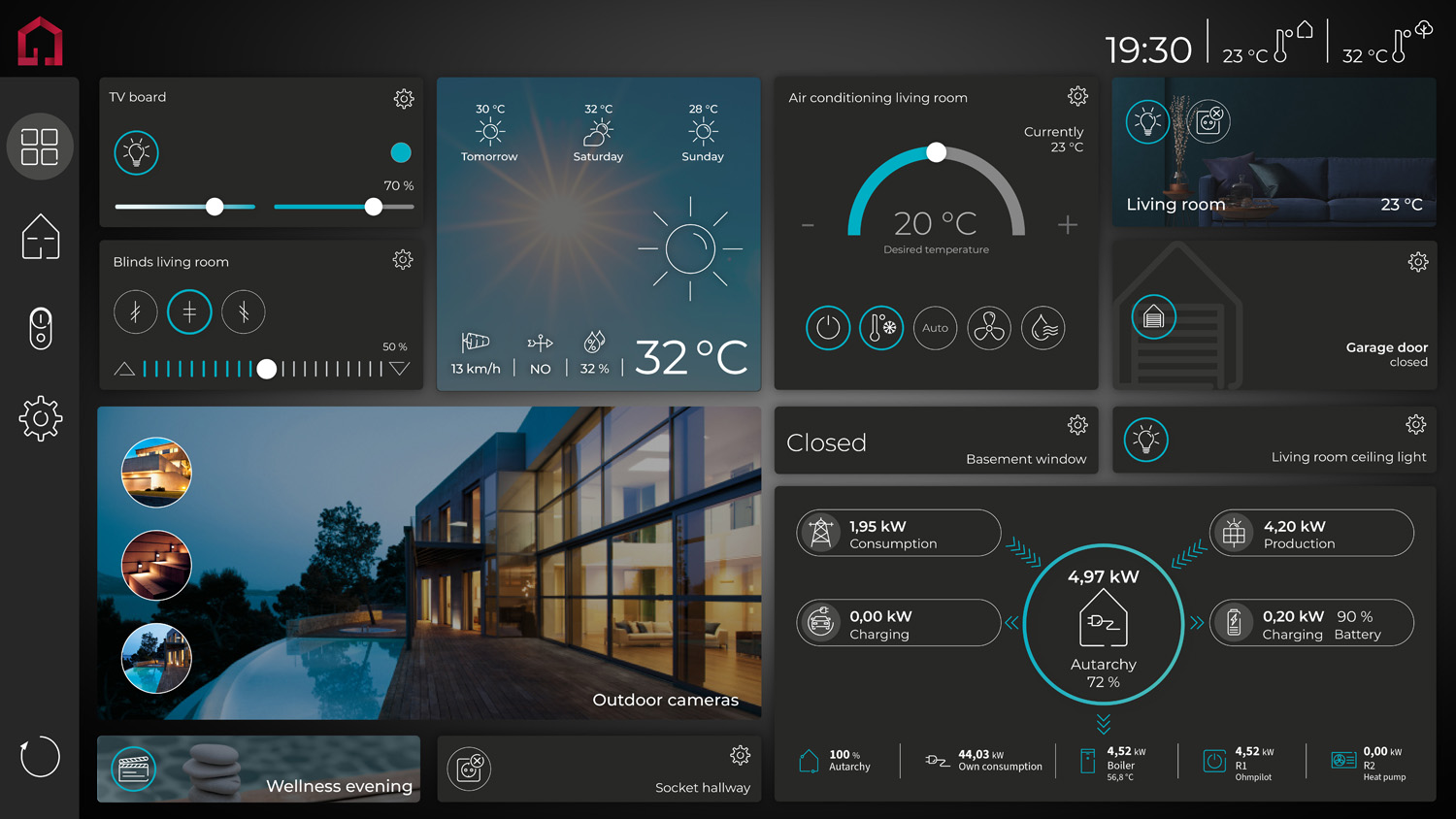

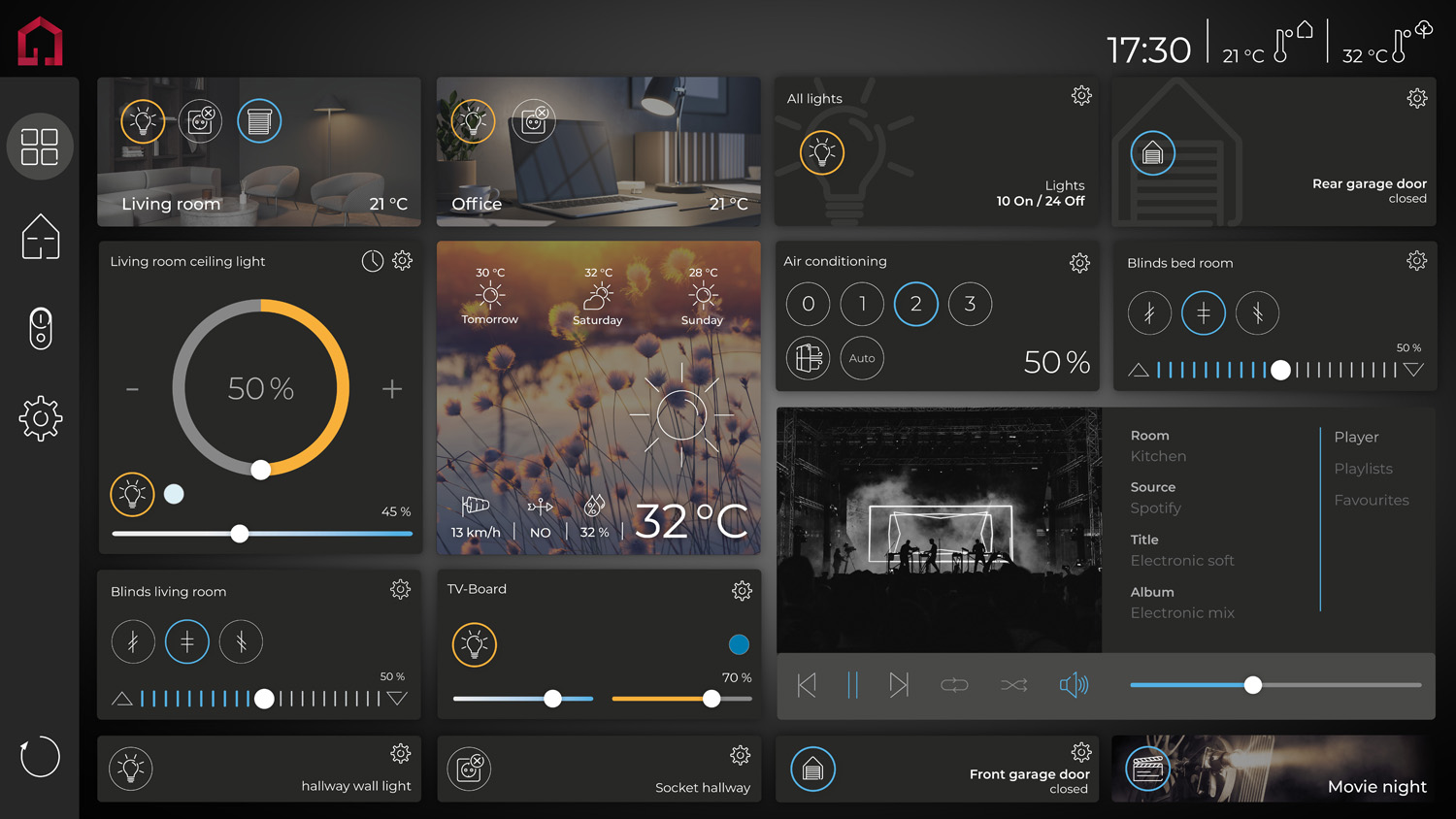

May it be a little darker?

Switch to the elegant dark mode of YOUVI with just one click. The KNX visualisation adapts to your needs and is thus easy to read even in poor lighting conditions. The dark mode is also gentle on your eyes.

Discover the multiple display and setting options of the YOUVI visualisation

Sensor data recorded graphically

Each sensor widget has a graph display that shows the sensor value over the day, week, month, or year.

Supported sensors
  • Binary
  • CO2 (ppm)
  • Pressure (Pa)
  • Humidity (%)
  • Brightness (lux)
  • Noise (W/m²)
  • Percent
  • Temperature (°C)
  • Wind speed (m/s)
  • Wind direction
  • Time (12h and 24h format)

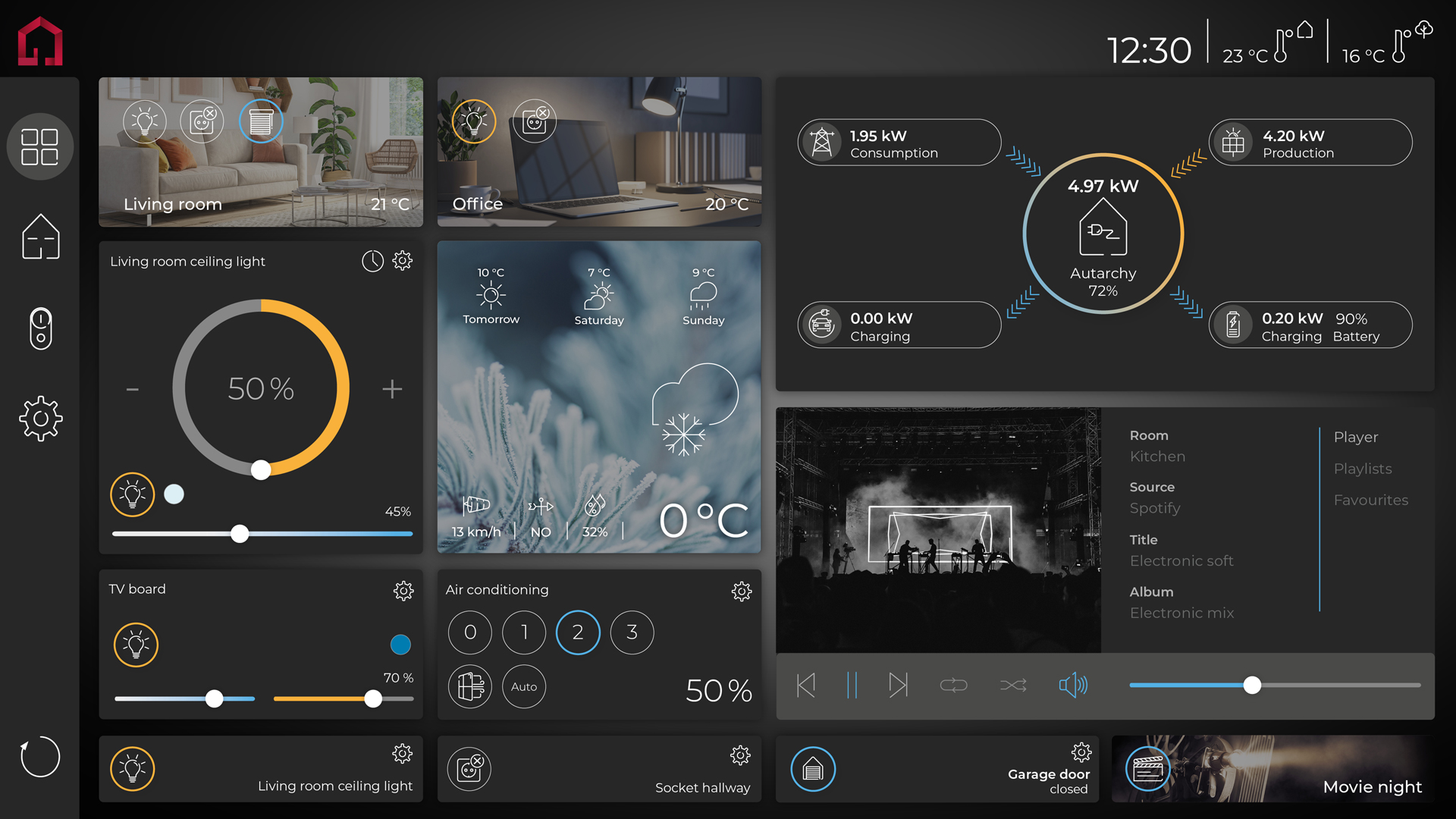

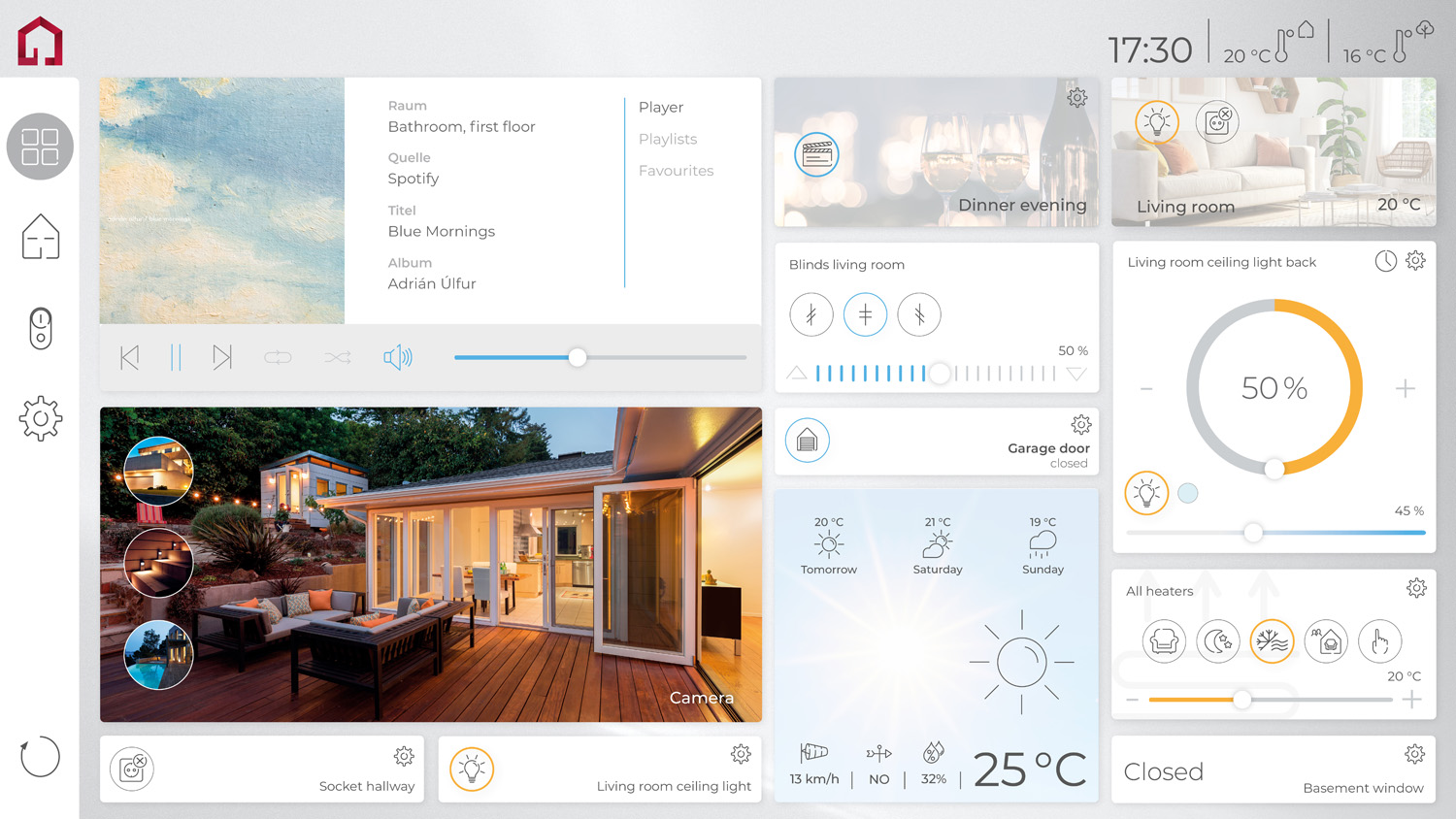

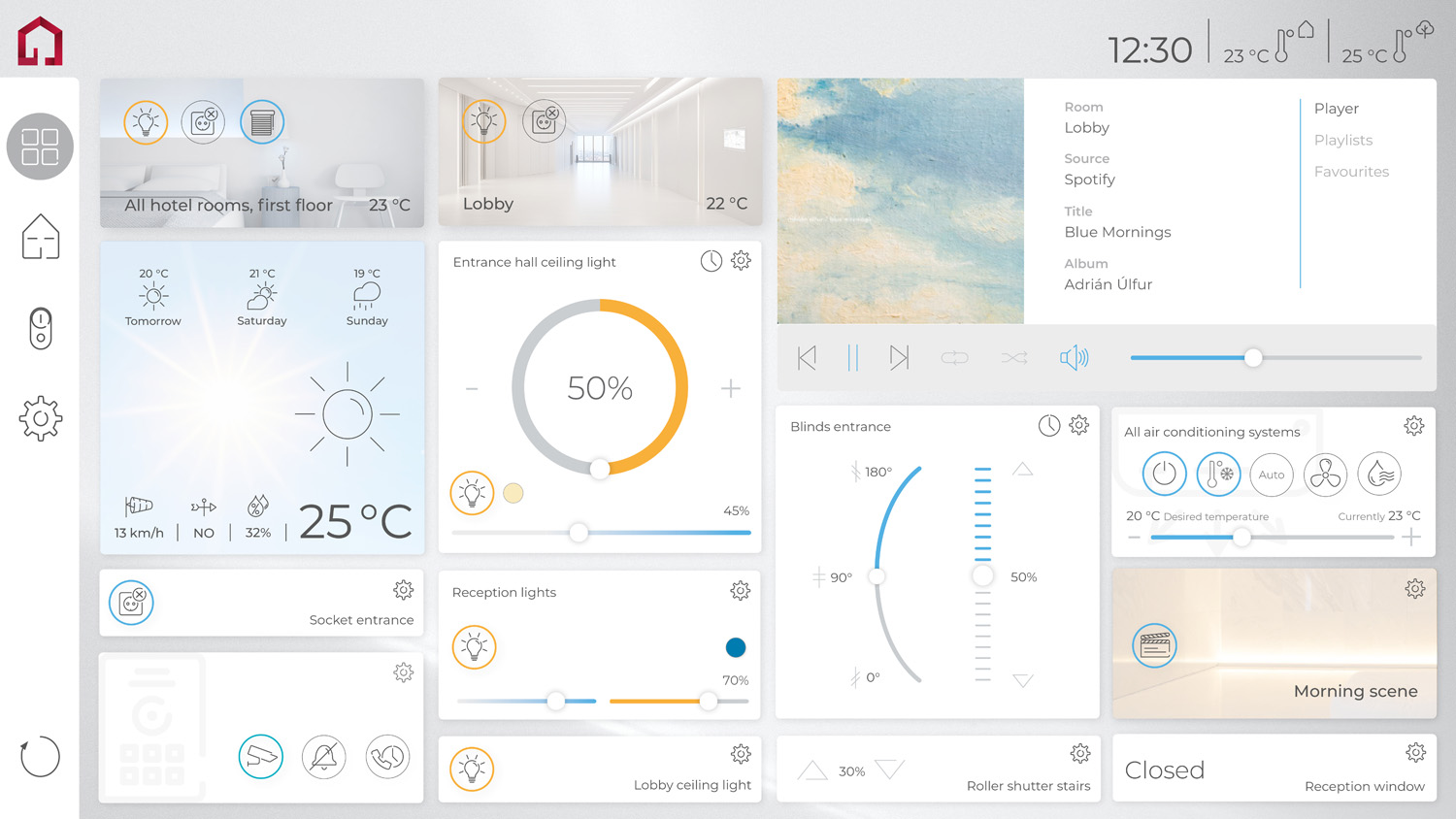

Customize your own dashboard

Design your personal dashboard with the frequently used devices. You can arrange all the tiles as you like by dragging and dropping and adjust their size in two different levels.

Create up to 5 dashboard pages

Each user has their own preferences for the arrangement of the separate tiles for home control. With up to five dashboards to swipe through, each smart home resident can create their own dashboard.

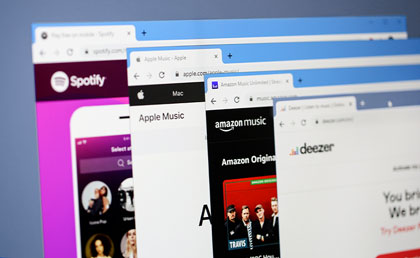

Extend functionality with Web Widgets

Give YOUVI a few additional individual functions by displaying important websites on your dashboard. This way you will always be up-to-date and informed.

Ideas for web widgets
  • Outlook Calendar
  • News webpages
  • Online portals for IP devices
  • Music libraries like iTunes or Amazon Music

3 sections for the best overview

Choose from three layouts to find the one that suits you best. If you want to get a better overview of your widgets, the dashboard can be divided into up to three sections. These create with a scroll bar space for as many functions as you like.

Change building structures or devices intuitively

Many changes can be made directly in the YOUVI visualisation even without a professional. Less stress and unnecessary costs for all involved is the result.

View possibilities
  • Add/delete floors, rooms, buildings
  • Change room names and symbols
  • Add new devices
  • Make changes to existing devices
  • Move devices to other rooms via drag & drop
Home Control on the Go with the Smart Home App

Home control on the go with the smart home app

If you want to control your KNX building remotely, you can use the additional Connect module in conjunction with the YOUVI smart home app. This is available free of charge for use at home for Android and iOS smartphones.

View module

Set routines and automatic processes

The logic module makes your building think and takes a lot of work out of your hands. Your building reacts to defined events in the way you want it to and notifies you about them if you wish. This saves you time as well as energy when, for example, the heating is regulated automatically.

View module

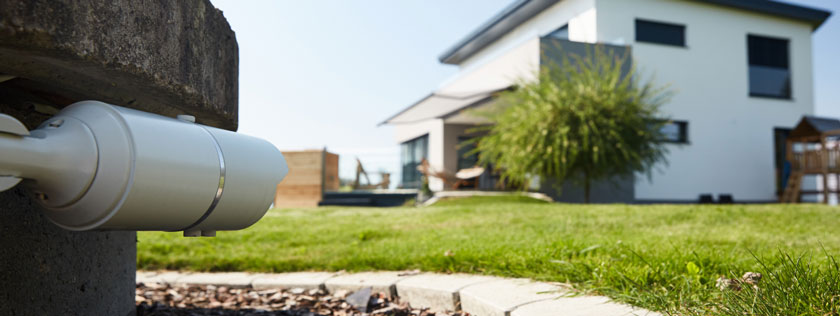

Camera and video surveillance

Integrate your surveillance camera directly into the YOUVI visualisation. This is done via camera widgets that you can freely assemble and place on the dashboard. This way you can keep an eye on important places on your property.

View module

Integrate Netatmo devices

Integrate Netatmo devices, such as thermostats or weather stations, directly into the smart home visualisation YOUVI. This way you can always keep an eye on the weather and the temperature in your smart home.

View bridge

Smart Home Control with Alexa

Smart home control with Alexa

With YOUVI you can control your house conveniently by voice command without moving a single finger. Amazon's voice assistant handles everyday tasks for you: Simply tell Alexa what actions you want your building to perform.

View module

Guaranteed compatibility

YOUVI can integrate all devices that communicate according to the KNX protocol. This means that in addition to KNX/EIB devices, devices controlled via DALI, EnOcean or other protocols can also be connected via a KNX gateway and integrated into the visualisation.

YOUVI compatibility

Already included in the basic package:

Useful tools save costs and protect your nerves

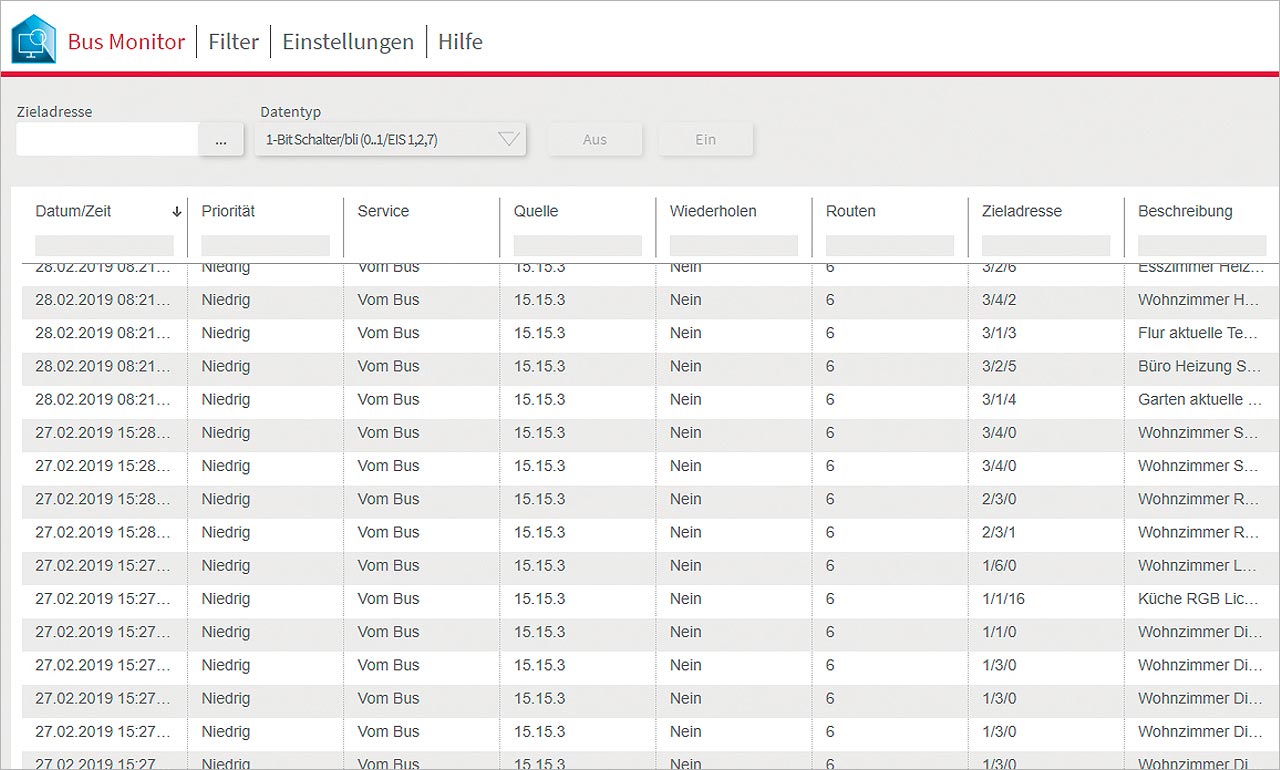

Bus monitor

With the bus monitor software, you always have an overview of your KNX network. All telegrams transmitted on the KNX bus are logged in tabular form. With the help of numerous filter options, any faults that occur are quickly found and solved.

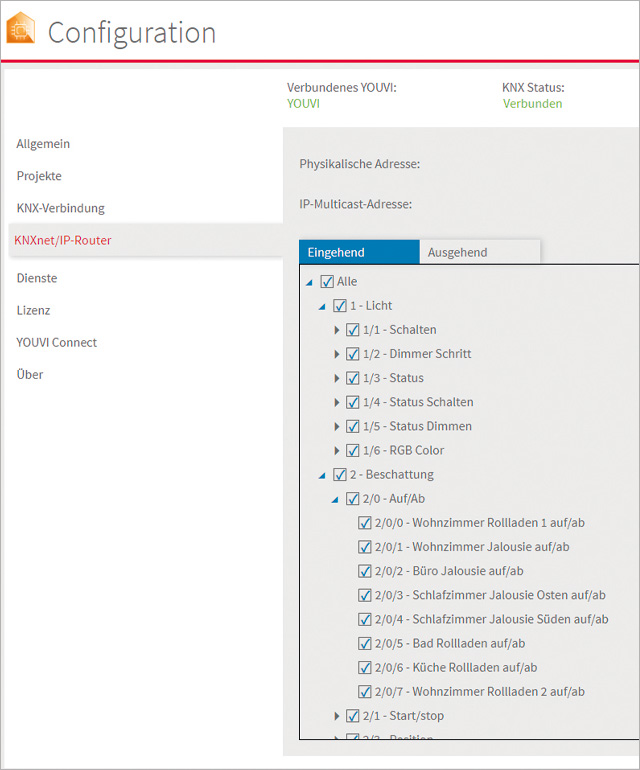

IP router

The IP router software creates a connection between the KNX building control system and the IP network. IP-capable devices (such as the Controlmini or Controlpro) can thus be used as KNX IP routers without the need for additional hardware.

ETS import

Easy set-up via ETS import function

The visualisation of the devices, their room allocation as well as group functions and standard icons are already created automatically by an ETS project import.

View tutorial (German)

The YOUVI add-on principle

With the add-on principle, you get a building control system that is tailored exactly to you.
This means you only pay for the features you really need.

YOUVI Basic
Visualisation (for comprehensive building control)Check
Bus monitor (tool for troubleshooting)Check
IP router (replaces hardware IP router)Check
Connect Module (mobile app, voice control)Optional
Camera ModuleOptional
Logic ModuleOptional

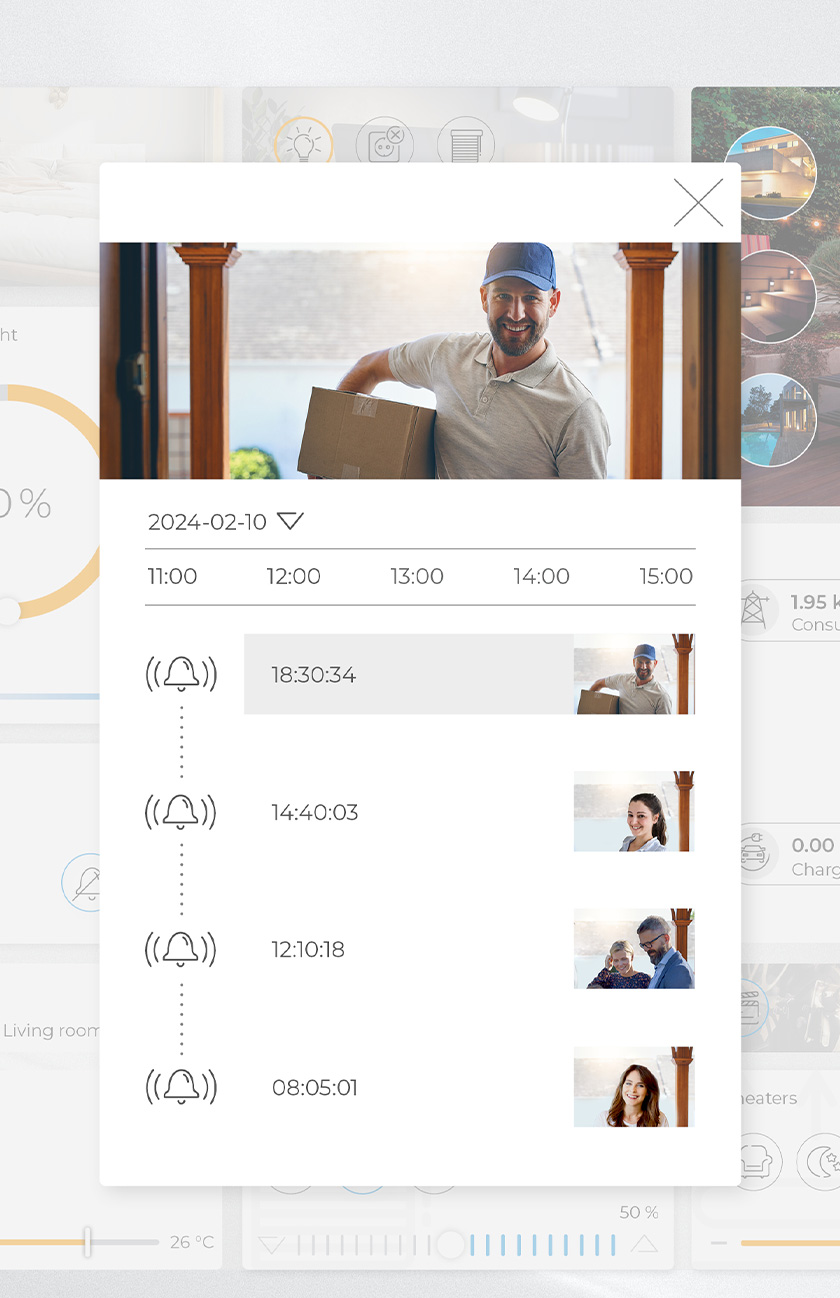

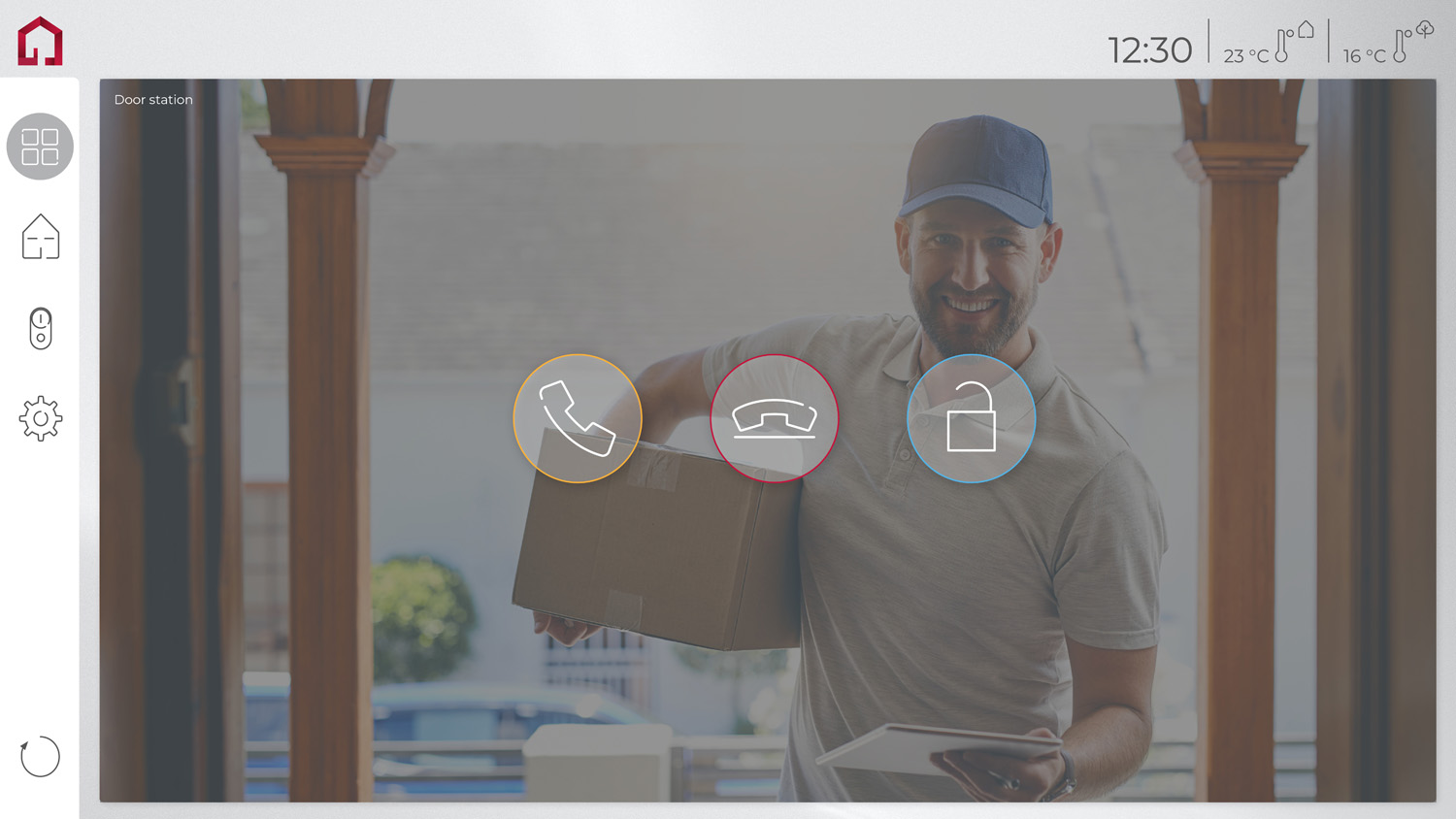

Door station Modulecoming 2021
Netatmo BridgeOptional
0,- €*
* YOUVI Basic is already
included with PEAKnx hardware.
Upgrade for USB-Connector
without YOUVI for 179,00 €

Use YOUVI with the PEAKnx hardware

YOUVI is designed for use with PEAKnx hardware. Only with our touch panels, servers, or the USB-Connector YOUVI can be used and develop its full potential.

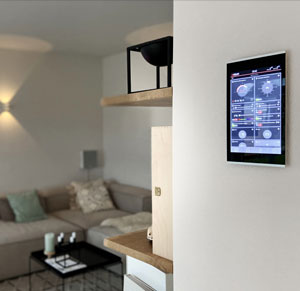

YOUVI with PEAKnx Touch Panels

YOUVI + PEAKnx touch panel

YOUVI Basic is already included on the touch panels.

To the product

Retailers nearby

Test YOUVI for 90 daysYOUVI with USB-Connector

YOUVI + USB-Connector

Use YOUVI on any Windows based hardware.

To the product

Retailers nearby

YOUVI with PEAKnx Knx Server

YOUVI + Performance Server

The visualisation runs on a Windows/iOS/Android device.

To the product

Retailers nearby

YOUVI smart home control at a glance

Intuitive use

INTUITIVE USE
Find everything you need for home control at a glance.

Dark Mode

Dark Mode
Change to a darker view according to your preference.

Individual dashboard

INDIVIDUAL DASHBOARD
Easily create your own personal control centre.

Control from anywhere

CONTROL FROM ANYWHERE
Control your home from anywhere with the mobile app.

Excellent design

EXCELLENT DESIGN
Convince yourself of the award-winning design.

YOUVI Advantages
Features
Supported devices
Installation
System requirements

YOUVI Basic : Visualisation

  • Creating the visualisation from a direct ETS import
  • Create scenes via drag & drop
  • 3 different dashboard layouts
  • Up to 5 different dashboard pages
  • Web widgets for the integration of web pages into the visualisation
  • Room buttons to control all lights, blinds or sockets of a room from the dashboard
  • Create device groups of one type, e.g. a group of lights, a group of blinds/shutters, etc.
  • Trigger button (push button) for sending switching commands and simultaneous display of the status (free input)
  • Diagram view of the sensor values, display: daily, weekly, monthly and yearly view
  • Timer
  • Weather station, with wind speed, wind direction, temperature and humidity display, as well as 3-day forecast, can be used with or without own sensors
  • Camera widgets, for IP camera integration (with YOUVI Camera Module)

Modification of the surface:

  • Move the device tiles via drag & drop
  • Expand or collapse tiles
  • Adding placeholders
  • YOUVI Dark Mode (dark design)

Modification to the project structure or devices:

  • Add/delete floors, rooms, buildings
  • Change room names and symbols
  • Add new devices
  • Change existing devices: device icon, name, type, room assignment, group addresses
  • Move devices to other rooms via drag & drop

Other functions:

  • Filter the devices by:
    • Type (light, heating, shutters, ...)
    • Status (active/inactive, comfort/ economy mode/...)
    • Location (floor, room, created KNX area)
  • Filtered master tile for overview and control of device groups
  • Selection of sensors for outdoor and indoor temperature display in the title bar
  • Backup
  • Cleaning mode
  • Lock Edit Mode
  • Auto start
  • Supported languages: German, English, French

YOUVI Basic KNXnet/IP router

  • IP-capable devices (Controlmini, Controlpro, Laptops) function as KNX IP routers, additional hardware becomes superfluous
  • Supports up to 15 IP tunneling connections, EIBlib/IP, multicast and extended frames
  • Individual transmission of incoming and outgoing group addresses via filter table

YOUVI Basic Bus Monitor

  • Logs all telegrams that are transmitted on the KNX bus in tabular form
  • Offers numerous filter and export options
  • Occurring faults are quickly found and solved

YOUVI Mobile App

  • For iOS or Android
  • Access via WiFi (home network) included in YOUVI Basic
  • Cloud connection for on-the-go access included in YOUVI Connect module
  • View for rooms, connection and dashboard
  • Control of all supported devices
  • Display of all supported sensors
  • Control device groups of one type
  • Starting Scenes
  • Trigger button (push button) for sending switching commands and simultaneous display of the status
  • Custom state button with status display (Logic Module)
  • YOUVI Dark Mode (dark design)

YOUVI Mobile Apat App StoreYOUVI Mobile App at Google Play

Modules to extend YOUVI Basic

> YOUVI Connect Module: Building control on the road via Smart Home App and on site via voice control with Alexa

> YOUVI Camera Module: Integration of JPEG, MJPEG and RTSP streams from the surveillance cameras into the visualization

> YOUVI Logic Module: Creation of logics, routines and presence simulations in the user-friendly logic editor

> YOUVI Netatmo Bridge: Integration of Netatmo thermostats and weather stations into the visualisation
