The PEAKnx Controlmini

Controlmini
11.6” KNX touch panel

The Controlmini is a real all-rounder in the field of smart home control. The KNX control panel can be used for classic building control, for status and information visualisation.

KNX visualisation for your home and room control

Lights (dimmers, RGB luminaires)
Create the right atmosphere with lighting.
Sockets & switches
View devices and turn them on and off.
Shutters & blinds
Raise or lower shading devices as needed.
Timer
Specify when the function should be executed.
Heating
Adjust your home to a comfortable temperature.
Scene creation
Create scenes directly in the visualisation using drag and drop.
Web widgets
Flexibly extend the range of functions via web widgets.
Home control via app
Free of charge at home and with the Connect module also remotely.
Voice control
Control your KNX building by voice command via Alexa.
Automatic processes
Set if-then rules in the KNX smart home simply by yourself.
Camera integration
Include IP cameras in your visualisation.
Bridges to other brands
Integrate devices from other manufacturers directly into the KNX visualisation.


More modules and functions

YOUVI Screenshot

KNX visualisation for your home and room control

With the included YOUVI Basic software package, you control your smart home easily and intuitively.

Lights
Switches
Shutters
Timer
Heating
Scene creation
Web widgets
Home control via app
Voice control
Automatic processes
Camera integration
Bridges to other brands

Create the right atmosphere with lighting.

YOUVI Screenshot

More modules and functions

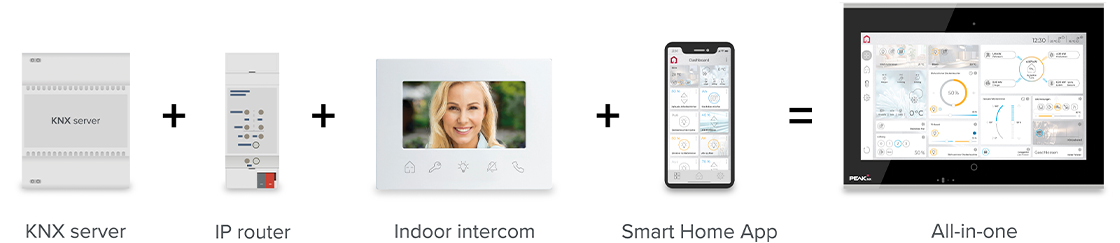

All in one device!

KNX server, IP router, smart home app and visualization are already included in the scope of delivery of the touch panel

Controlmini: The All-In-One Solution

A calculation that works. The Controlmini is not just a piece of hardware. The included YOUVI software turns the device into a true all-in-one wonder, so you do not need external hardware.

Stand alone or as a client in the network – the choice is yours!

Controlmini as KNX Server

All-in-one solution in combination with YOUVI

In combination with YOUVI, you can run the Controlmini as a stand-alone knx touch panel that is not dependent on an external server or IP router. Especially for family homes and medium-sized projects, this unit of hardware and software is a good solution.

Controlmini as a client variant

Client solution in combination with external server and IP router

If you already have a central control unit or an external KNX server (e.g. PEAKnx Performance Server or Gira Homeserver), you can connect the Controlmini as a client variant. Especially for larger KNX projects, a central server can provide additional security.

Open for other applications and visualisations

The Controlmini is a fully-fledged computer equipped with Windows 10 LTSC, which not only enables the use of all Windows and web-based visualisations, but is also suitable for browser applications, for example.

Depending on the used visualisation, SIP door intercoms with video transmission, alarm systems and energy management can also be displayed in the KNX visualisation via the KNX touch panel.

View visualisation options
    All Windows- or web-based, e.g.:
  • Alexander Maier GmbH: EisBär SCADA
  • BabTechnologie: CubeVison
  • Gira: QuadClient, Ajax, X1
  • Hager: Domovea
  • Enertex: EibPC
  • Symcon GmbH: IP-Symcon
  • Edomi, openHAB and many more ...
Controlmini with visualization software

Compatibility guaranteed

The Controlmini can be used with various smart home solutions from different manufacturers.

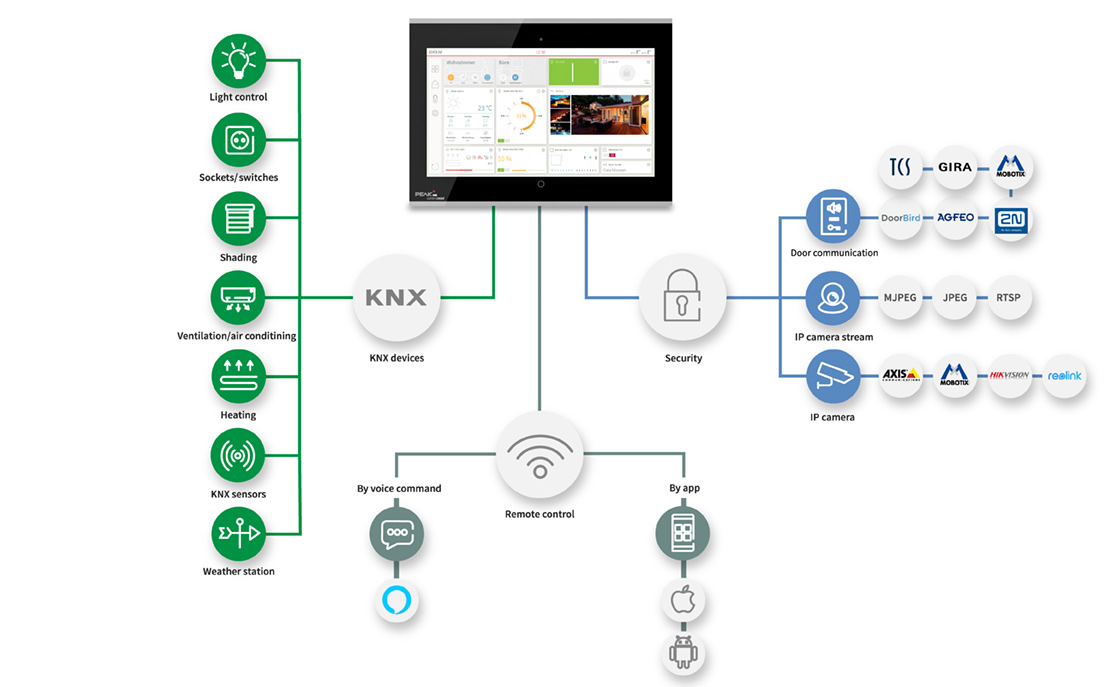

Controlmini Compatibility
Controlmini Components

Powerful components for top performance

Full HD Display11,6” Full HD display
HD-Webcam5 Megapixel HD-webcam
Quad-Core processorIntel Quad-Core processor
4 GB RAM4 GB main memory
loudspeakerBroadband loudspeaker
MikrophoneOptimized microphone

Smart heat management for permanent operation

Unlike mobile devices such as tablets, the fixed PEAKnx touch panels are designed for permanent operation. The sophisticated heat dissipation system ensures that the device continues to run smoothly even after many years of use and does not produce stripes on the wall.

No moving partsNo moving parts
Metal housingMetal housing milled from one piece
permanent operationDesigned for permanent operation
Cooling by convectionCooling by convection

Controlmini glass design

Infinite glass designs

Whether in corporate design with your own company logo or matched to the private interior design – you determine the appearance of your KNX touch panel! The exchangeable glass covers can be individually designed and turn the Controlmini into a real eye-catcher in every smart home.

Red Dot Design Award

For new construction, renovation or retrofitting

The Controlmini can be installed both flush-mounted and as a surface-mounted version. Thanks to its ultra-thin design, the KNX touch panel appears flat and elegant on the wall, regardless of the installation variant. Due to the two mounting options, the Controlmini is suitable for new smart buildings as well as for retrofitting.

flush-mounted

flush-mounted

floating opticsFloating effect (lying flat against the wall)
Distance from wall: 7mmDistance from wall: 7 mm

surface-mounted

surface-mounted

quick mountingQuick mounting on a switch box
Distance from wall: 25 mmDistance from wall: 25 mm

Extensive exchange options

The Controlmini can be retrofitted wherever flush-mounted boxes are installed which have maximum dimensions of 215 x 135 mm. Simply mount the panel in the surface-mounted version.

Exchange options:
Flush-mounted box: 212 x 124 mm, e.g. MT701 devices:
  • ABB devices with UP-KAST2 flush-mounted box
  • BERKER Minitableau MT701 with flush-mounted box 75900021
  • GIRA MT701
  • MERTEN MT701
  • JUNG devices with EBG24 flush-mounted box
    • Minitableau LED 2411
    • Minidisplay LCD 2425
    • Shading control 2425 BST
    • SP 5.1 KNX
Flush-mounted box: 211 x 130 mm, e.g. U.Motion Touch 7:
  • Schneider MTN6270-5001 - Flush-mounted box
  • Merten MEG6270-5001 - Flush-mounted box
Adapter frame available for:
ABB
  • ABB MT701
  • ABB Raumpanel / Controlpanel (6136/30M-500, 6136/100M-500, 6136/100C-500)
  • ABB SMARTtouch (monochrome, colour) (6136/100C-500-102, 6136/100CB-102, 6936/100C-102, 6936/100CB-102, 6136/100C-500-101, 6136/100CB-101, 6936/100C-101, 6936/100CB-101)
  • Flush-mounted box:
    • UP-KAST2
Berker
  • Berker Master Control 7574001x
  • Berker MT701
Busch-Jaeger
  • Busch-ComfortPanel 9“ (8136/09-811, 8136/09-825)
  • Busch-ComfortPanel 12,1“ (8136/12-811, 8136/12-825)
  • Busch-Jaeger Controlpanel color (6136/100CB-102, 6936/100CB-102, 6136/100C-102, 6936/100C-102)
  • Busch-Jaeger Raumpanel (monochrom) / Controlpanel (monochrom, color) (6136/100C-101, 6136/100M-101, 6136/30M-101, 6136/100CB-101; 6936/100C-101, 6936/100M-101, 6936/30M-101, 6936/100CB-101)
  • Flush-mounted boxes:
    • 6136/UP, 8136/01 UP-500 und 8136/01 UP
Feller
  • Feller Home-Panel 7"
  • Flush-mounted box:
    • Agro 9926.90
Gira
  • Gira InfoTerminal Touch 2072xx
  • Gira Control 9 Client 1 und 2
  • Gira MT701
  • Flush-mounted boxes:
    • 2082 00 und 063900
Jung
  • Jung Smart Panel 5,7” SP 5.1 KNX
  • Flush-mounted box:
    • EBG 24
Merten
  • Merten Touch-Panel 7
  • Flush-mounted box:
    • MEG6270-0003

The use of standard cavity wall- or mounting boxes is also possible if a 24 V DC power supply is available. These include the Italian standard box type 503E and the German standard box Kaiser round box 1555-04.

Elegant, compact, versatile!

Choose your suitable product from our flexible exchange sets or the Controlmini including the attractive YOUVI visualisation. It' s up to you how you mount the control panel and which visualisation you use for building control.

PEAKnx Touchpanel Controlmini

PEAKnx Controlmini

The direct KNX connection and the included YOUVI software package turn the Controlmini into a fully-fledged smart home control center and stand-alone server.

To the product

Dealers close by

Ideal as Gira Control 9 replacementControlmini replacement kit Gira Control 9

Exchange set Gira Control 9

The Controlmini is the perfect replacement for a Gira Control 9 device. It can effortlessly display the full scope of the Gira HomeServer on its full HD display.

To the product

Dealers close by

Controlmini replacement kit

Other replacement sets

The Controlmini can be retrofitted wherever flush-mounted boxes with maximum dimensions of 215 x 135 mm are installed – simply with the surface-mounted version.

To the product

Dealers close by

Technical Details
Scope of delivery
Factsheet
Instructions
Controlmini Dimensions

Specifications

  • Intel Quad-Core processor
  • Fanless convection cooling (airflow)
  • 4GB RAM
  • eMMC 64 GB memory, extendable with Micro SD
  • 11.6 inch Full HD LCD panel with LED backlighting
  • Resolution 1920 x 1080 pixels
  • Multi-touch, PCAP touch technology
  • 5 megapixel HD webcam
  • Broadband stereo speakers
  • Optimised microphone with room characteristics
  • WiFi: 2,4GHz IEEE 802.11b/g/n
  • Bluetooth: 4.0

Ports

  • 2 x USB 2.0 (front port)
  • 1 x USB 3.0
  • 100 Mbit Ethernet
  • 1 x mini HDMI
  • 2 x KNX
  • Supply terminals: 24 V DC, GND

Software

  • Operating system: Windows 10 IoT Enterprise LTSC
  • YOUVI software package basic

Dimensions

  • Dimensions Controlmini (W x H x D): 297 mm x 210 mm x 22,5 mm
  • Dimensions flush-mounted box (W x H x D): 251 mm x 193 mm x 50 mm
  • Dimensions glass cover (W x H x D): 297 mm x 210 mm x 0.7 mm

Supply and power consumption

  • Supply voltage: 24 V DC 2,4 A
  • Operation (idle): 10 W
  • Operation (full-load): 15 W
  • Server operation without LCD: 5 W
