Control 16

From €3,249.00

To €5,959.00

In stock

SKU
PNX14-10001

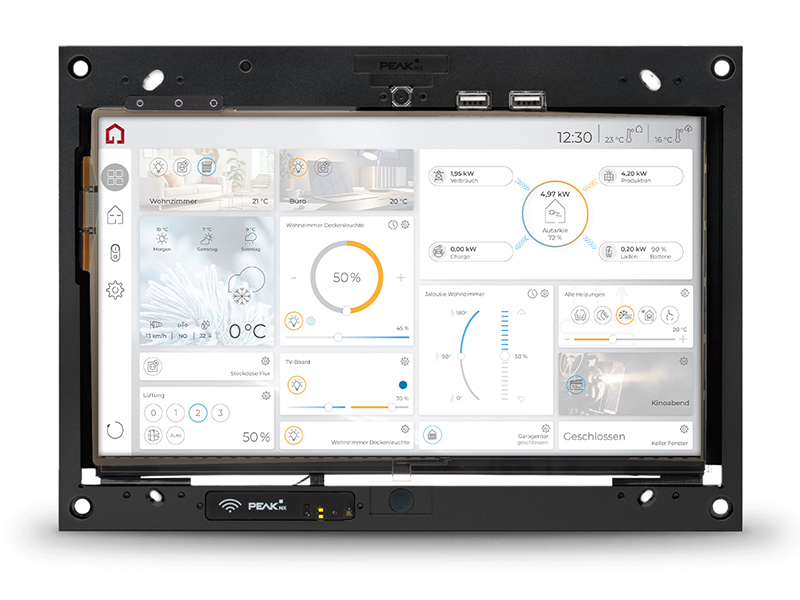

The Control 16 is a powerful touch panel featuring an exceptionally large screen area relative to its housing. The 15.6" Full HD control panel, including YOUVI visualisation, can be used for room or building control, as a status and information display, for multimedia applications, or as an intercom station for door communication systems. Five function buttons integrated on the side can be individually assigned to devices and http commands. When used with YOUVI visualisation, it is also possible to assign logic functions. The KNX touch panel is designed for continuous and durable operation and can be used as a client (e.g. with Gira Homeserver) or as a standalone server. With a choice of frame colours and customisable front glass, every design preference can be met. The Control 16 is highly versatile thanks to its multiple mounting options.

Current delivery time: 2 weeks

Configure and add to cart
Customize Control 16

* Required Fields

Your Customization
    Control 16 - 01
    Control 16

    In stock

    €3,249.00

    All prices incl. 19 % VAT.
    30 days return
    Free support
    Fast delivery

    KNX building control with YOUVI visualisation

    With the Control 16 and the YOUVI Basic software package, all smart home control functions can be carried out from a central location. For example, sockets can be switched, blinds or temperature adjusted, lights changed in colour or dimmed. Using scenes or timers, devices can be set to operate at any desired time according to individual preferences. The YOUVI KNX visualisation is not only easy to use but can also be customised – effortlessly via drag & drop. Web widgets also provide a flexible way to integrate websites directly into the visualisation.

    Flexibly expand smart home functions

    If you want to integrate your door intercom or surveillance cameras into the visualisation, use Alexa voice control, or create your own automated routines, YOUVI Basic can be flexibly expanded with additional modules. You can also control the system via smartphone within your home network using the free YOUVI Smart Home app. For remote access, simply add the YOUVI Connect module. Additional smart home devices from manufacturers like Philips Hue, Netatmo, or Sonos can be connected to the YOUVI visualisation using the YOUVI Bridges.

    Open to other visualisations and multimedia applications

    The Control 16 is a fully-fledged Windows LTSC-based computer that enables the use of all Windows- and web-based visualisations (e.g. Gira QuadClient or CubeVision by BAB-Tec). Other apps and browser applications such as calendar, email, and news can also be used, as well as multimedia applications from multi-room music systems to TV – making the Control 16 a true multimedia all-rounder.

    Use KNX touch panel as client or server

    The direct KNX connection and the YOUVI software package included in delivery make the Control 16 a complete smart home control centre and standalone server. External IP router hardware or an additional server is not required. Alternatively, the KNX display can also be used as a client with an external server (e.g. Gira Homeserver with QuadClient visualisation).

    Powerful smart home solution for continuous operation

    High-quality industrial-grade components ensure long-lasting operation even during continuous use. The fanless design eliminates moving parts, making the device maintenance-free and silent. Intelligent thermal management ensures reliable heat dissipation across the entire front surface of the panel – without causing striping on the wall. The powerful hardware enables smooth camera streams and effortlessly handles all tasks involved in extensive home automation.

    Interchangeable front glass for custom panel design

    The use of high-quality materials like aluminium and glass not only supports heat dissipation but also gives the Control 16 a premium appearance. With magnetically attached front glasses, the appearance of the control panel can easily be adapted to match your interior. Depending on your design preference, the glass can also be supplied without the PEAKnx logo or printed with your own.

    For a custom glass cover, please contact order@peaknx.com.

    Mounting options from surface to flush-mounted

    Thanks to its slim design, the Control 16 can be mounted both flush-mounted and surface-mounted. With the appropriate adapter frame, a flush finish with the wall is even possible. Flush mounting puts the KNX control centre elegantly on display, creating a particularly refined appearance. For a visual accent, the surrounding aluminium edge can be left visible. Alternatively, for a more discreet look, the edge can be plastered over. In addition to the proprietary back box, the panel is also compatible with many other wall boxes.

    Replacement options

    The Control 16 can be installed in the flush or surface-mounted box of the PEAKnx Control 12 touch panel. Suitable adapters are available for this purpose. The Control 16 can also be retrofitted wherever flush-mounted boxes are used with a maximum size of 215 x 135 mm. To do this, simply install the panel in the surface-mounted version.

    Scope of delivery
    • Control 16 Panel
    • YOUVI Basic software package
    • Installation and user manual
    • Network connector
    • Network patch cable
    • Certified cleaning cloth

    Specifications

    • Intel Dual-Core processor (4 threads), 11th generation
    • Fanless convection cooling
    • 8 GB RAM
    • 256 GB SSD hard drive
    • 15.6 inch Full-HD LED LCD display
    • Resolution 1920 x 1080 pixels
    • Adaptive brightness
    • Automatic switching on of the screen via
      proximity sensor
    • Multi-touch, PCAP touch technology
    • 5 side-buttons
    • Integrated stereo speakers and microphone
    • WiFi 2.4 GHz, 5 GHz, Bluetooth 5.2

    Ports

    • 2 x USB A 2.0 (front port)
    • 1 x USB C 3.2 Gen2
    • 1 gigabit Ethernet
    • KNX
    • Supply terminals: 24 V DC, GND

    Software

    • Operating system: Windows IoT Enterprise LTSC
    • YOUVI software package basic

    Dimensions

    • Dimensions Control 16 (W x H x D): 378.4 mm x 245.5 mm x 26 mm
    • Dimensions flush-mounted box (W x H x D): 251 mm x 193 mm x 50 mm
    • Dimensions glass cover (W x H x D): 387.4mm x 231.1 mm x 1.5 mm

    Supply and power consumption

    • Supply voltage: 24 V DC 2.4 A
    • Operation (idle): 6 W
    • Operation (full-load): 40 W
    • Server operation without LCD: 4 W

    Windows LTSC as basis

    The panel is equipped with Windows LTSC. This reduces maintenance and software issues, as no Windows updates are allowed except for security updates. Features provided by Windows also enable quick navigation via swipe gestures or eye-friendly operation in darkened night mode.

    Open to common visualisations

    In addition to the included YOUVI Visu software, other common visualisation programmes (e.g. Gira X1, Gira QuadClient or CubeVision from BAB-Tec) can easily be run on the panel. An overview can be found in the "Compatibility" tab.

    KNX software YOUVI Basic included

    The YOUVI Basic software package, consisting of visualisation, bus monitor and KNX IP router, is included with the purchase of the PEAKnx panel. This eliminates the need for an external IP router or server for basic control tasks. The visualisation is automatically generated from the ETS project structure and is available in German, English and French. YOUVI is not only easy to use, but can also be customised – simply via drag & drop. If you wish to integrate IP cameras into the visualisation, use voice control or create your own routines and logic, YOUVI Basic can be flexibly extended with add-ons.

    YOUVI product presentation

    Key features at a glance

    YOUVI Basic visualisation
    Key functions
    • Visualisation created via direct ETS import
    • Create scenes via drag & drop
    • Up to 5 dashboard pages with 3 layout options each
    • Web widgets to integrate websites into the visualisation
    • Sensor data diagram view: daily, weekly, monthly, and yearly
    • Energy monitoring widget
    • Device filter by type, status and location
    • Light and dark themes
    • Visualisation editable even by non-experts
    • YOUVI add-ons, e.g. for sound systems, door stations and voice control
    • Available languages: German, English, French

    You can find the full functionality of the app under "All YOUVI features"

    Supported devices
    • Lighting
    • Sockets and switchable devices
    • Roller shutters
    • Blinds
    • Dimmers, including tunable white
    • RGB(W) lights
    • Heating
    • Ventilation
    • Weather stations

    Supported camera streams via camera module:

    • Formats: RTSP, MJPEG, JPEG
    • For example: Mobotix, Hikvision, Reolink, Axis
    Supported sensors
    • Binary
    • CO2 (ppm)
    • Pressure (Pa)
    • Humidity (%)
    • Brightness (lux)
    • Noise (W/m², dB)
    • Power (W, kW)
    • Percentage
    • Rainfall sensor (l/m²)
    • Current (mA)
    • Temperature (°C)
    • Wind speed (m/s)
    • Wind direction
    • Active energy (kWh)
    • Time (12h and 24h formats)
    • Other numerical values (ETS data point types 7.x, 8.x, 9.x)
    YOUVI Basic KNXnet/IP router
    • IP-capable devices (Control 12, Controlmicro, Controlpro, laptops used with the USB connector) function as KNX IP routers – no additional hardware needed
    • Supports up to 15 IP tunnelling connections, EIBlib/IP, multicast and extended frames
    • Custom filtering of incoming and outgoing group addresses via filter table
    YOUVI Basic bus monitor
    • Logs all telegrams transmitted on the KNX bus in tabular form
    • Offers extensive filtering and export options
    • Quickly detects and resolves faults
    YOUVI Basic mobile app
    • For iOS or Android
    • Access via Wi-Fi (home network) included in YOUVI Basic
    • Cloud connection for remote access included in the YOUVI Connect module

    You can find the full functionality of the mobile app under "All YOUVI features"

    YOUVI Mobile App in the App StoreYOUVI Mobile App on Google Play

    Broad compatibility for maximum flexibility

    You can use the Control 16 with a wide range of smart home solutions from various manufacturers. All combination options are listed here:

    Visualisations

    All Windows- or web-based visualisations, e.g.:

    • BabTechnologie: CubeVision
    • Gira: QuadClient, Ajax, X1
    • Home Assistant
    • Hager: Domovea
    • Enertex: EibPC
    • Symcon GmbH: IP-Symcon
    • ThinKnx
    • Loxone
    • Edomi, openHAB and many more …

    Flush-mounted boxes

    Adapters available for flush-mounted boxes such as UP-KAST2, Jung EBG 24 or Busch-Jaeger 6136/UP – for replacing, for example:

    Find out more

    ETS

    • ETS5 (YOUVI)
    • ETS Inside server

    Cameras

    IP streams in RTSP, JPG and MJPG format, e.g. from:

    • Hikvision
    • Axis
    • Lupus
    • Reolink
    • Mobotix and many more …

    Door communication

    All SIP-enabled intercom systems, e.g.:

    • Gira DCS incl. DCS Gateway (in combination with Gira software)*
    • DoorBird IP video door station
    • AGFEO IP video TFE
    • 2N IP Verso
    • Wantec Monolith C IP
    • Mobotix T25
    • Siedle InHome/Access and many more …

    Music software

    Windows- or web-based software, e.g.:

    • Apple iTunes
    • Spotify
    • Sonos and many more …

    Network TV tuner

    *Use with YOUVI is limited to the audio stream. The Gira door station does not provide its video stream for use outside its own proprietary software. However, integration of an alternative camera stream is possible.
